Equipment : Fixed Equipment/Machinery Hauling

Battery Trailer

Features & Benefits

Optimize your service work with this customizable battery transport trailer. By working directly with you, we can offer the size and capacity required for your storage needs. We can also up fit your charge management component helping you make this trailer a time saving, reliable tool for your switchgear service work. And you’ll get the durability and reliability Sauber Mfg. Co. trailers are known for.

Specifications

Capacity: 12150 lbs
Dimensions: 18’L x 96″W
Cargo: 144″x68.5″
Axle: (2) 7000 lbs
Brakes: 12″ x 2″, High Performance
Suspension: n (4) 3500 lbs Springs
GVWR: 16450 lbs
Tires: (4) 235/80R16, LR E
Rims: 6.00 x 16.0 Disc

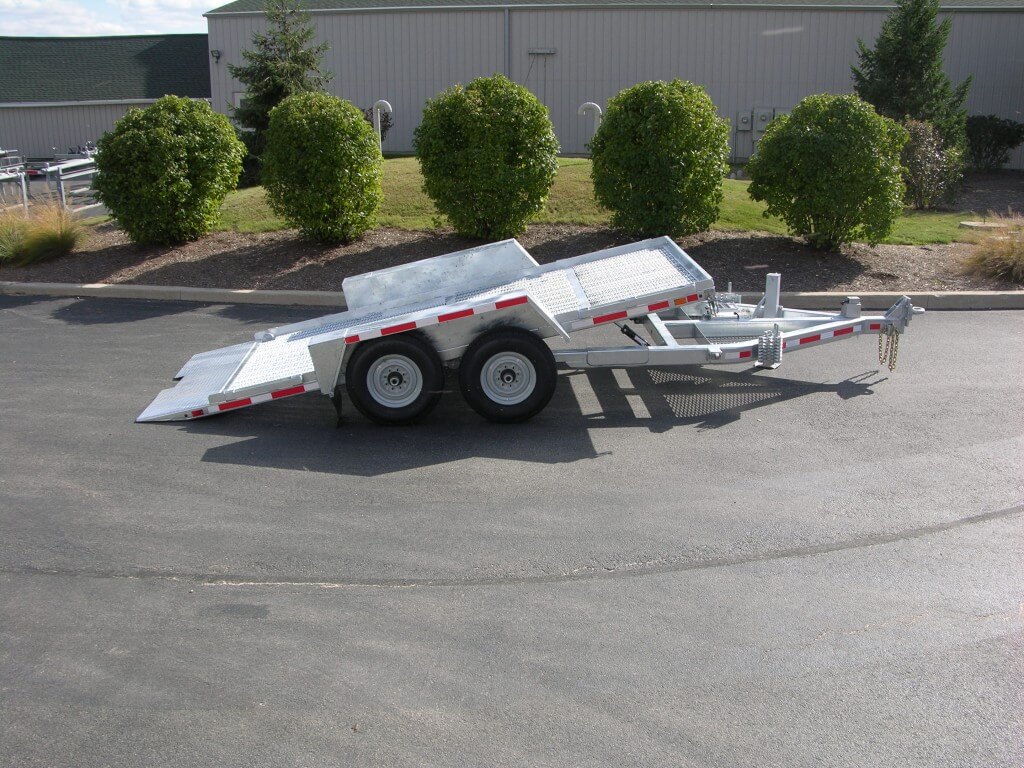

Tiltbed Trailer

Features & Benefits

This unique deck over tiltbed provides extra cargo and easy side access. With standout features such as galvanizing, stainless-steel pivot pins and a pivoting rear bumper, the standard specification has much to offer. Of course, we can design and build access and storage features to make your work more efficient. If you require both tiltbed convenience and large, easy access deck capacity, this trailer is a sure thing.

Specifications

Capacity: 13275 lbs
Deck: 192″L x 98″W
Dimensions: 23’L x 102″W
Axle: (2) 8000 lbs
Brakes: 12.25″ x 3.38″, High Performance
Suspension: Torflex
GVWR: 18800 lbs
Tires: (4) 215/75R17.5, LR H
Rims: (4) 6.75 x 17.5, Disc

Tiltbed Trailer

Features & Benefits

Your work requires mid to small sized equipment that enhances productivity. The Model 1580-TBA Tiltbed Trailer transports them reliably and efficiently with easy-to-use features plus durability. Standard hot dipped galvanized finish and angelim decking plus a treadplate deck options and available specialty storage creates a trailer that lasts and optimizes your time. Rely on this Sauber Mfg. Co. equipment trailer to help complete the work.

Specifications

Capacity: 11800 lbs
Deck: 252″L x 80.5″W Cargo Including 48″L Fixed Deck & 24″L Beavertail
Dimensions: 27’L x 102″W
Axle: (2) 7000 lbs
Brakes: 12″ x 2″, High Performance
Suspension: Torflex
GVWR: 16450 lbs
Tires: (4) 235/80R16, LR E
Rims: (4) 6.00 x 16.0, Disc

Tiltbed Trailer

Features & Benefits

With high capacity, operator friendly features and proven durability, this equipment trailer is ready for utility work. Standard features such as galvanized finish and angelim decking are coupled with a Hutch suspension and a 14.6 degree loading angle. Standard operator access steps with three-point contact and stainless-steel toolbox add to your crew’s safety and efficiency. This unit is designed for productivity and low lifecycle cost.

Specifications

Capacity: 19350 lbs
Deck: 20′ x 96″
Dimensions: 28’L x 96″W, 33″ Deck Height
Axle: (2) 12000 lbs
Brakes: 12.25″ x 5″, Air
Suspension: Hutch # H-900 Single, Point – 36,000 lbs
GVWR: 28200 lbs
Tires: (8) 235/80R16(E)
Rims: (8) 6.00 x 16, Disc

General Purpose Flatbed Trailer

Features & Benefits

Better than “off the shelf”, the Model 1580-GP General Purpose Trailer allows you to configure a trailer to your specific requirements. With configurations that carry ATV’s to small cargo or specialty materials, this trailer provides purpose built utility with enhanced durability. Sauber Mfg. Co. standards such as bent tube frame, protected wiring harness, solar battery box, hot dipped galvanized finish with galvanized undercarriage components insure this trailer will last.

Specifications

Capacity: 2500-12,000 lbs
GVWR: 2950-16,450 lbs
Dimensions: 15’L-22’L x 80-102″W Overall

Flat Deck Trailer w/ Ramps

Features & Benefits

With low deck height and lightweight ramps, this trailer is the right fit for many applications. You can specify the deck material, d-rings and securement choices and access steps improve your efficiency. The standard, hot dipped galvanized, bent tube frame with heavy-duty fenders offer longevity. Sauber Mfg. Co. will work with you to create the right solution to your equipment hauling requirements.

Specifications

Capacity: 12050 lbs
Deck: 192″L x 77″W plus 67″L Ramps
Dimensions: 23’L x 102″W Overall
Axle: (2) 7000 Torflex
Brakes: 12″ x 2″, high performance
Suspension: Torflex
GVWR: 16450 lbs
Tires: (4) 235/80R16 LR E
Rims: (4) 6.00 x 16.0, Disc

Beavertail Equipment Trailer – 60K GVWR

Features & Benefits

High-capacity durability comes standard with the Model 1580-BTD Beavertail Equipment Trailer. The triple axle configuration provides a stable equipment transport and the Galvanized finish, angelim decking and low effort ramps add long life and improved safety. Securement and storage options can be designed into your trailer so each job goes smoothly.

Specifications

Capacity: 49,000 lbs
Deck: 22’L plus 6’L Beavertail
Dimensions: 35’L x 102″W Overall
Axle: (3) 22500 lbs
Brakes: 12.25″ x 7.5″ ABS Air w/ Spring Brakes All Axles
Suspension: Hutch H-9700 3-Leaf Suspension – 75,000# Capacity
GVWR: 60,000 lbs
Tires: (12) 215/75R17.5(H) Tires
Rims: (12) 6.75 x 17.5, Dual Wheels Galvanized

Beavertail Equipment Trailer – 40K GVWR

Features & Benefits

This 30,000 lbs. capacity beavertail trailer offers standard galvanized finish, angelim decking, and low effort ramps. Specify the securement and storage options you need to keep the work moving along. The pre-production approval drawing insures your design provides exactly what you require. This Sauber Mfg. Co. Equipment trailer is built to arrive “job ready” and keep working for years and years.

Specifications

Capacity: 30,335 lbs
Deck: 19’L plus 6’L Beavertail
Dimensions: 35’L x 101″W Overall
Axle: (2) 22500 lbs
Brakes: 12.25″ x 7.5″ ABS Air w/ Spring Brakes All Axles
Suspension: Hutch H-9700 3-Leaf Suspension – 50,000# Capacity
GVWR: 40,000 lbs
Tires: (8) 215/75R17.5(H) Tires
Rims: (8) 6.75 x 17.5, Dual Wheels Galvanized

Beavertail Equipment Trailer

Features & Benefits

These standard features are hard to find elsewhere. With galvanized finish, standard angelim decking, and low effort ramps, this unit is built for durability and safe use. Outfit the trailer with d-rings types and locations that fit the equipment and insure operators can work efficiently. Your trailer can be specified at the length and weight capacity required by the equipment load, and approval drawings allow you to insure it is the right fit. And when outfitted the way you specify, your Sauber Mfg. Co. Equipment trailer will arrive “job ready”.

Specifications

Capacity: 20,600 lbs
Deck: 19′ x 96” plus 4′ Beavertail
Dimensions: 29’L x 96″W, 33″ Deck Height
Axle: (2) 12000 lbs
Brakes: 12.25″ x 5″ Self-adjusting
Suspension: (4) 6000 lbs Springs
GVWR: 28,200 lbs
Tires: (8) 235/80R16, LR E
Rims: (8) 6.00 x 16.0, Disc

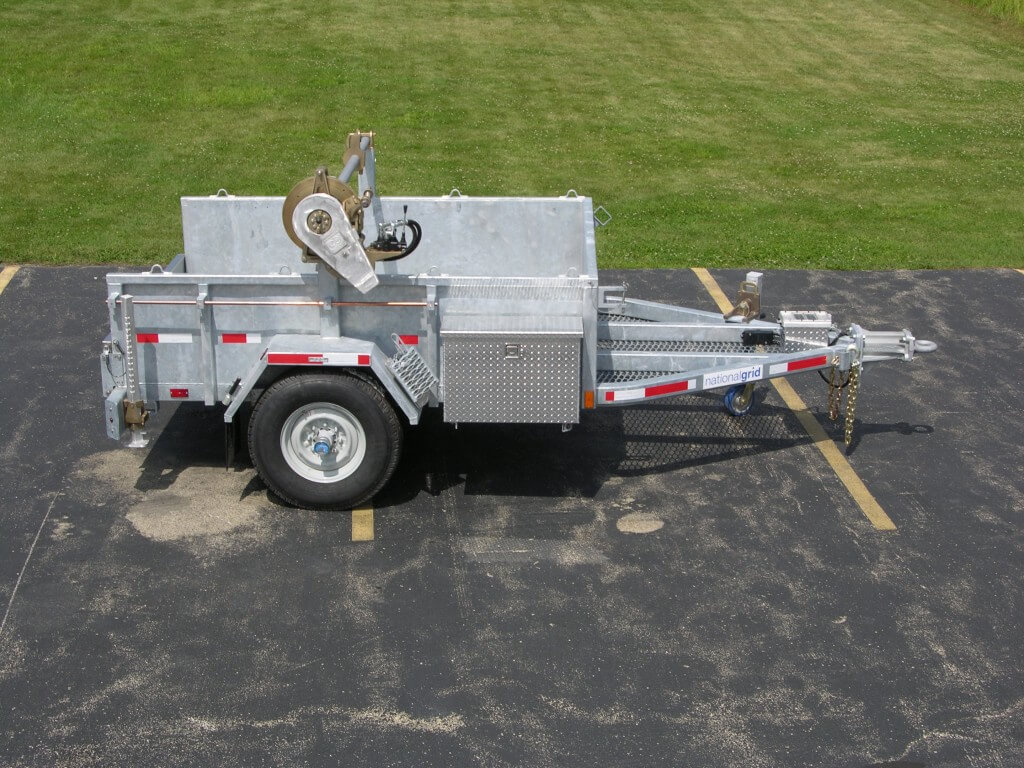

Three-In-One Trailer

Features & Benefits

This trailer handles your common line construction and maintenance work. It offers specialized cargo space with room for your materials, even cross arms. With the Model 1602 All Bronze Brake and Model 1000-T Turbo Retriever line repair and maintenance are a breeze. Choose truck tool circuit power or an optional 1010 Series Hydraulic Power Source. Standard LogiPerf Sides help keep cargo under control. To ensure long life, the trailer includes Hot dipped galvanized finish, galvanized undercarriage components and rust free fasteners.

Specifications

Capacity: 6120 lbs
Reel Size: 72″Dia x 56″W
Dimensions: 14’L x 96″W
Cargo: 96″ x 64″
Axle: 7000 lbs
Brakes: 12″ x 2″, High Performance
Suspension: 7000 lbs Torflex
GVWR: 8750 lbs
Tires: 235/80R16, LR E
Rims: 6.00 x 16.0, Disc
