Self-Loading: Yes

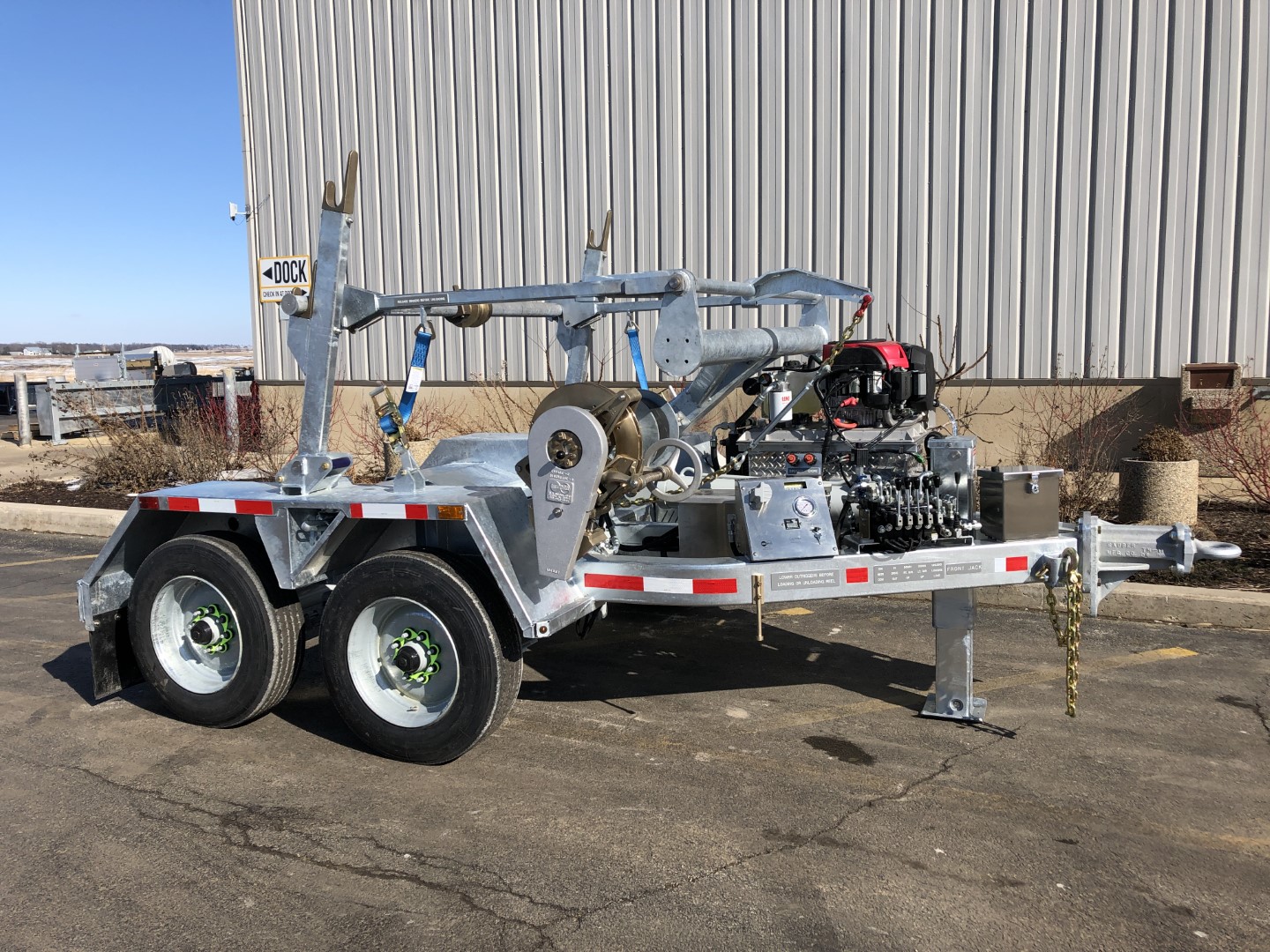

Large underground cable can be handled easily by this self-loading trailer. model. With 10-tons of capacity and beavertail loading, you can be ready to transport your heavy reels quickly. Your crews will have the ability to load and go without additional equipment or personnel. Take advantage of this by staging the reels near the work, reducing transport time. The flange drive brake and retriever are standard and avoid the heavy work of moving large cables by hand. Assist the cable’s entry by rotating the reel during installation. Feeding the cable to the puller reduces overall resistance and is easier on the conductor. The Model 1010 Series Power source is reliable with a vertical shaft, submerged pump and two stage filtration. And Sauber Mfg. Co.’s standard hot dipped galvanized bent tubing frame plus premium wiring ensure this trailer will last for years.

Capacity: 20500 lbs
Reel Size: 96″Dia x 66″W, 54″Dia x 48″W Min
Dimensions: 16’L x 96″W
Axle: (2) 15000 lbs stub
Brakes: 12.25″ x 5″, self-adjusting electric
Suspension: (4) 7500 lbs Springs
GVWR: 29000 lbs
Tires: (8) 215/75R17.5, LR H
Rims: (8) 6.75 x 17.5, Disc

This model may seem familiar, but key differences provide better use and durability. Non-rusting rack style loading includes machined slide surfaces and pivot points include stainless steel pins and oil lite bushing that do not need lubrication. The specially designed trailer frame ensures structural soundness throughout the life of the trailer. And options for additional capacity, overspin breaking, power payout, and loading method let you fit this unit to your work. Of course, protected sectionalized wiring harness, hot dipped galvanized finish, and other Sauber Mfg. Co. standard features are included as well.

Capacity: 8100 lbs
Reel Size: 108″Dia x 60″W, 52″Dia Minimum
Dimensions: 13’L x 102″W
Axle: 10000 lbs stub
Brakes: 12.25″ x 4″, self-adjusting
Suspension: (2) 7000 lbs Springs, Supporting Reel Bar
GVWR: 11350 lbs
Tires: (2) 235/75R17.5, LR H
Rims: (2) 6.75 x 17.5, Disc

Boost your underground construction capabilities with a high-capacity reel trailer that’s simple to load. With a beavertail loading method, you can be ready to transport heavy reels quickly. The flange drive brake and retriever are standard and avoid the heavy work of moving large cable by hand. The Model 1010 Series Power source is reliable with a vertical shaft, submerged pump and two stage filtration for reliability. And Sauber Mfg. Co.’s standard hot dipped galvanized bent tubing frame plus premium wiring ensure this solution will last for years.

Capacity: 10850 lbs
Reel Size: 96″Dia x 64″W, 48″Dia x 36″W Min
Dimensions: 13’L x 96″W
Axle: (2) 7000 lbs
Brakes: 12″ x 2″, high performance
Suspension: (4) 3500 lbs Springs
GVWR: 15250 lbs
Tires: 235/80R16, LR E
Rims: 6.00 x 16.0, Disc

With straightforward, durable construction, this trailer provides manual self-loading and transport of your smaller reel sizes. With geometry designed to provide correct leverage, your crews can easily load up and get right to the job site. And with Sauber standard features like hot dipped galvanized finish, premium wiring and serviceable components, the Model 1506-NS Self Loading Reel Trailer will serve for years to come.

Capacity: 1860 lbs
Reel Size: 54″Dia x 42″W
Dimensions: 9’L x 77″W
Axle: 2500 lbs
Brakes: None
Suspension: Torflex
GVWR: 2400 lbs
Tires: 175/80R13, LR B
Rims: 4.50 x 13.0, Disc

Get work done with a self-loading trailer in a size that’s suitable for towing with a supervisor’s truck. No need for for a forklift or hoist. Reels are conveniently loaded via on demand pendant controlled 12VDC electric/hydraulic power. Like all equipment we build, this Sauber Mfg. Co. trailer is ready for a long productive life with galvanized finish right down to the axle beam and wheels.

Capacity: 6150 lbs
Reel Size: 82″Dia x 81″W, 22″ Min Diameter
Dimensions: 12’L x 96″W
Axle: 7000 lbs
Brakes: 12″ x 2″, high performance
Suspension: Torflex
GVWR: 7950 lbs
Tires: 235/80R16, LR E
Rims: 6.00 x 16.0, Disc
