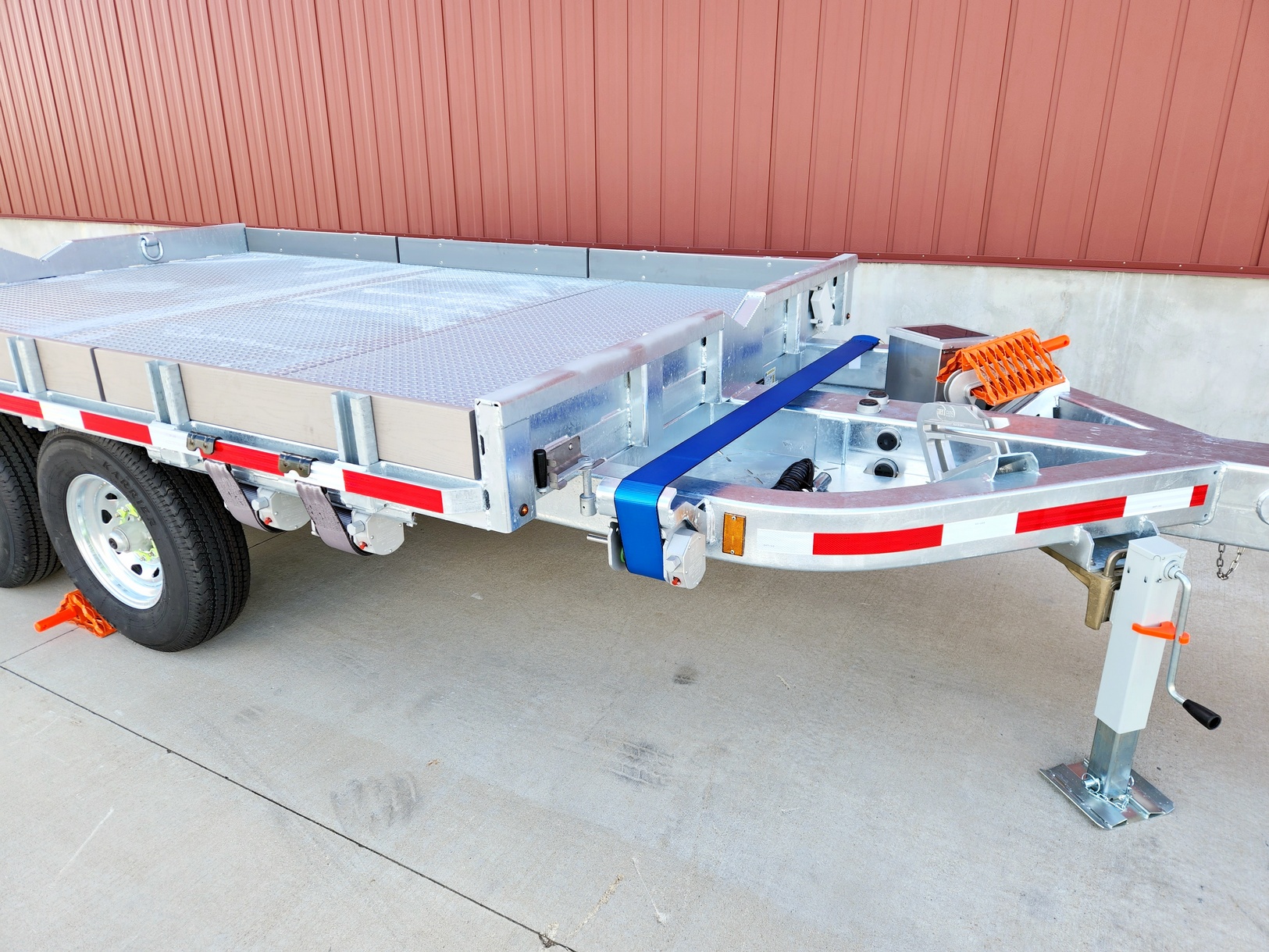

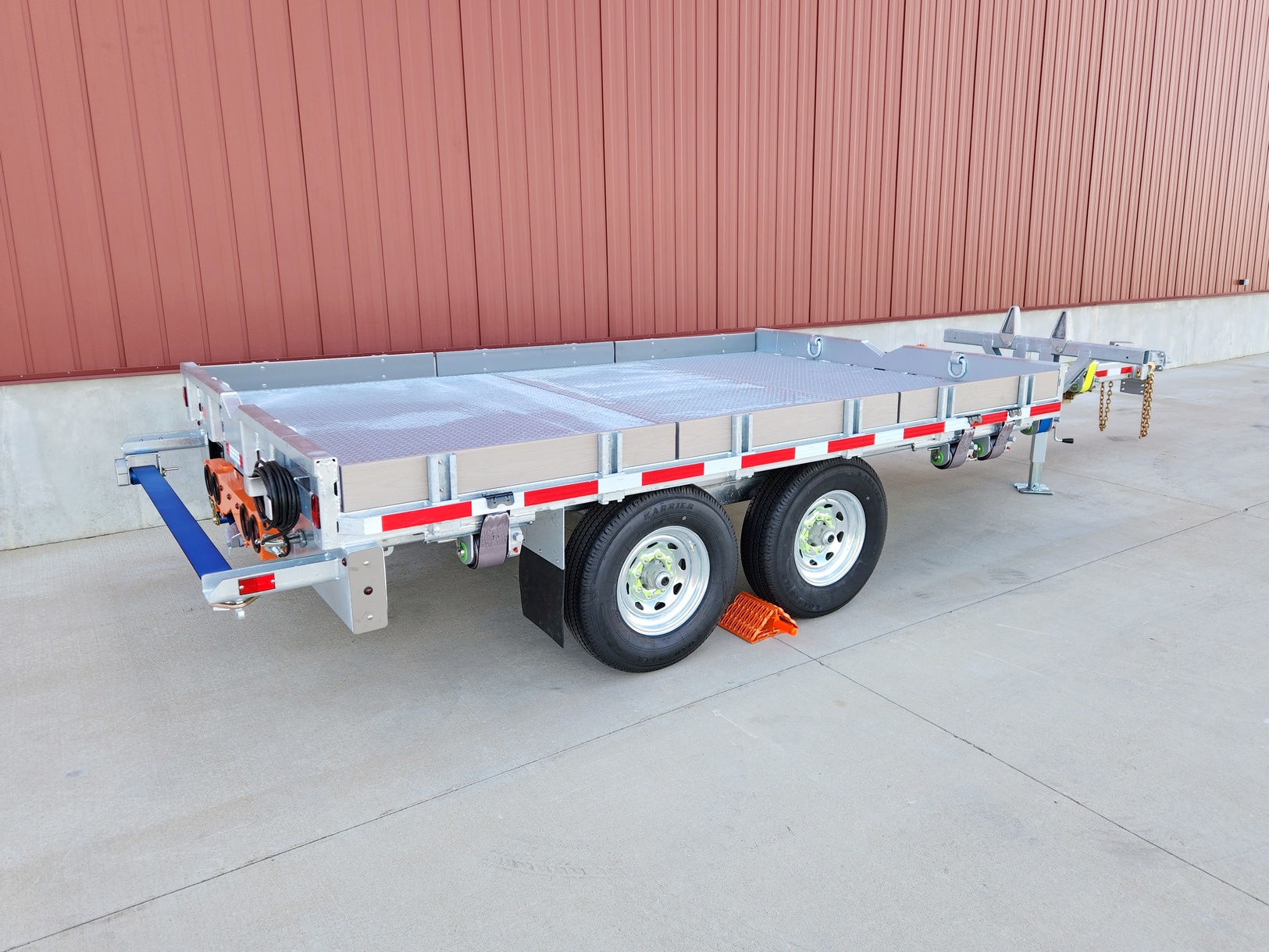

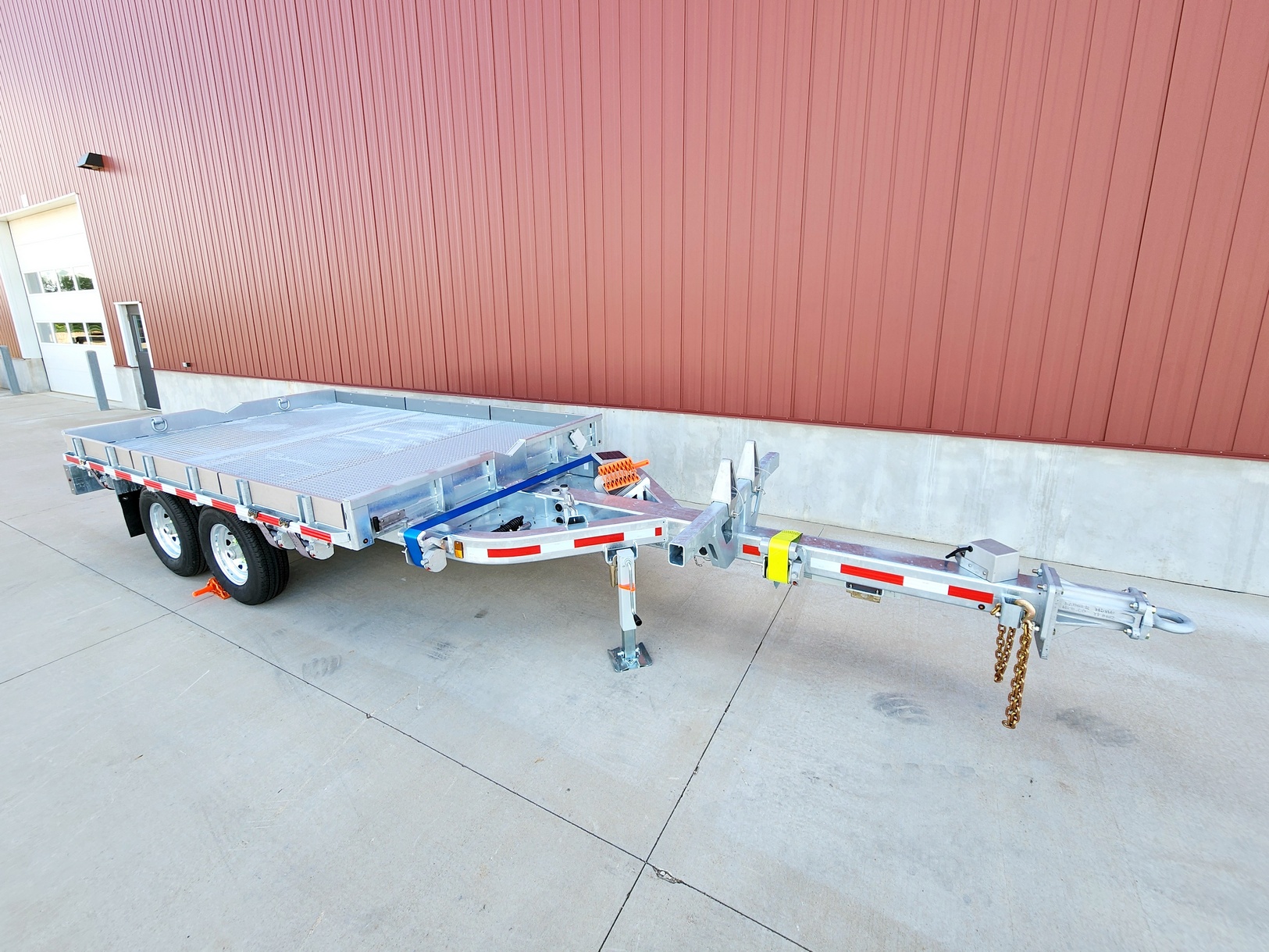

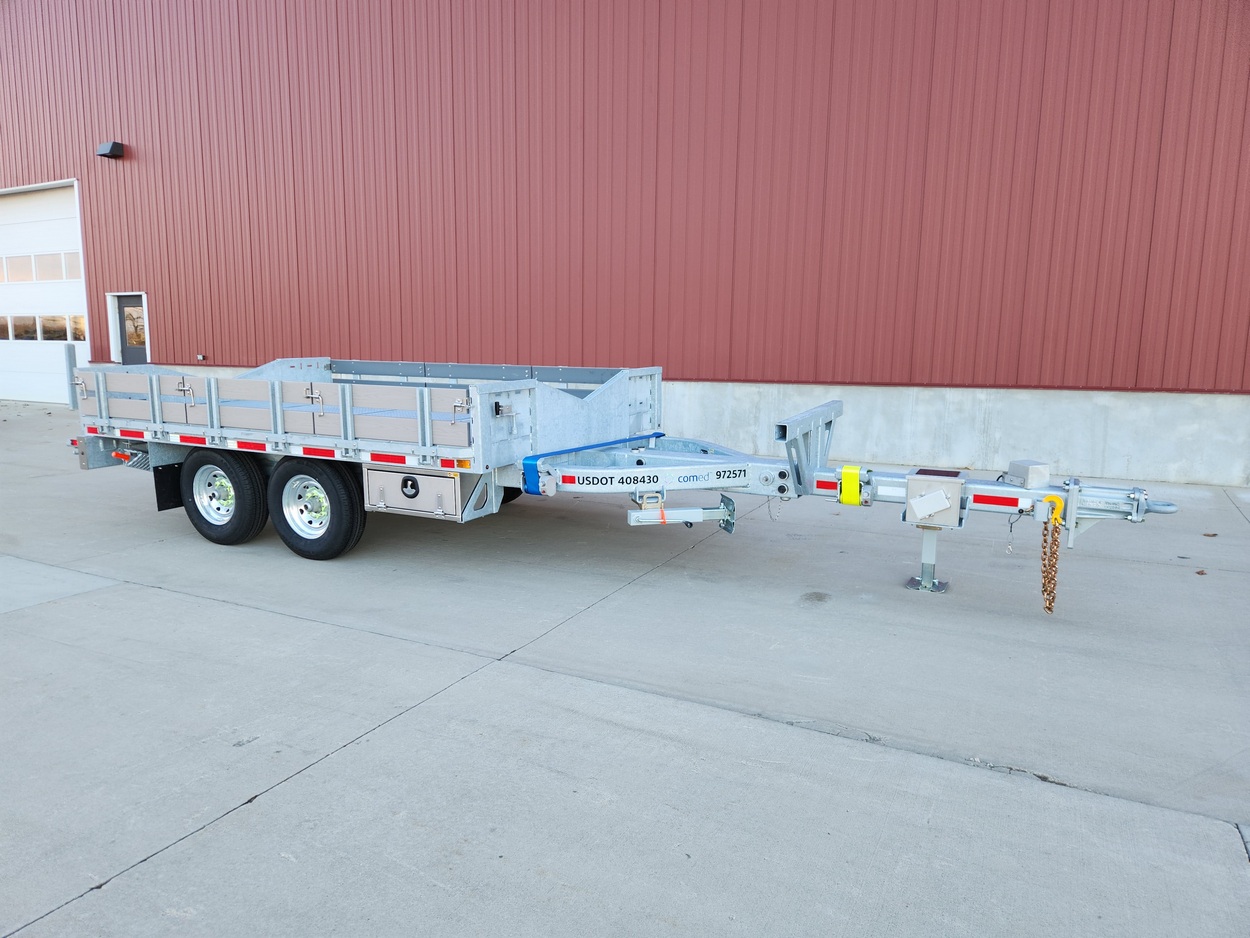

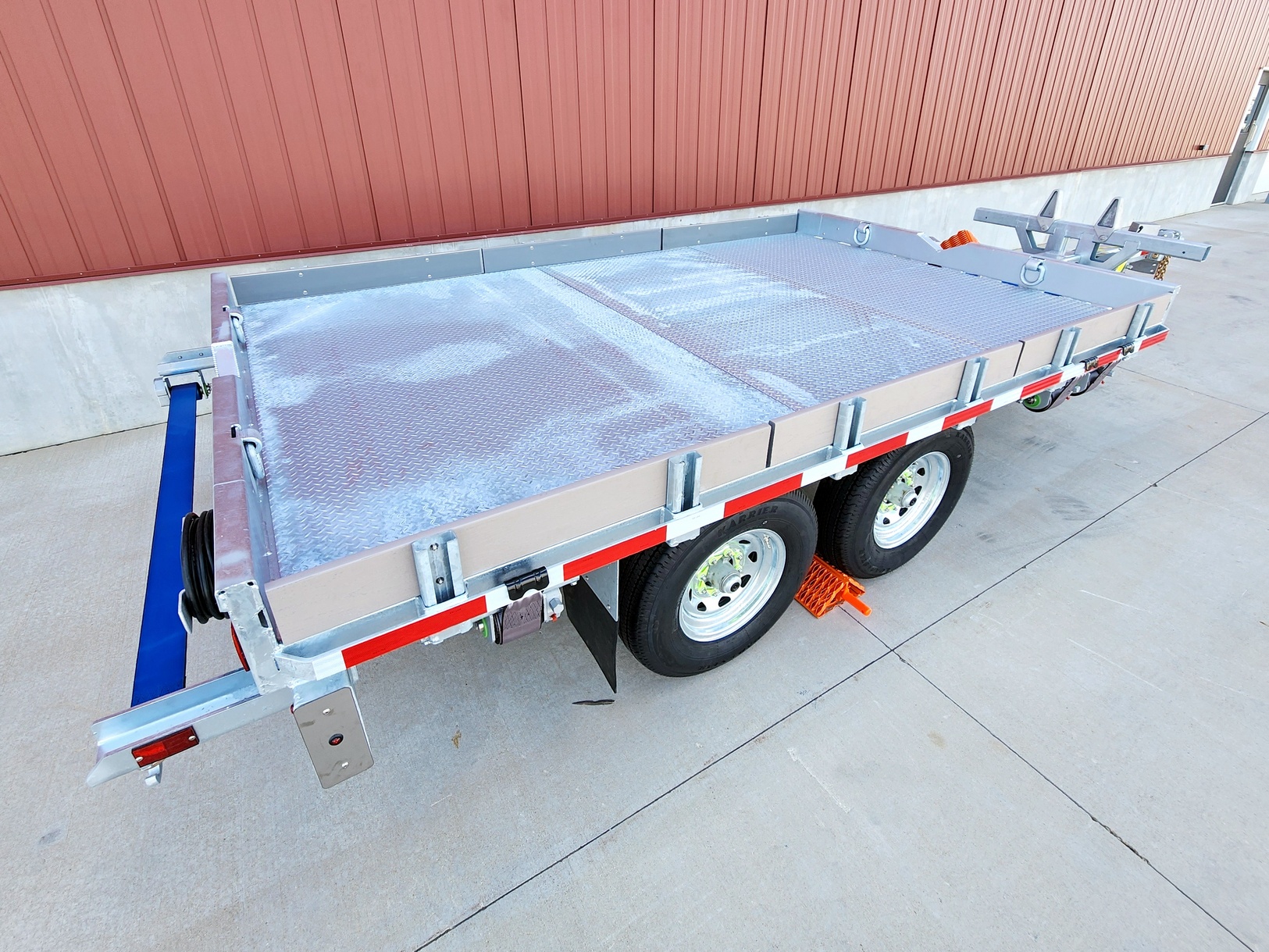

Combination Pole & Flatbed Trailer

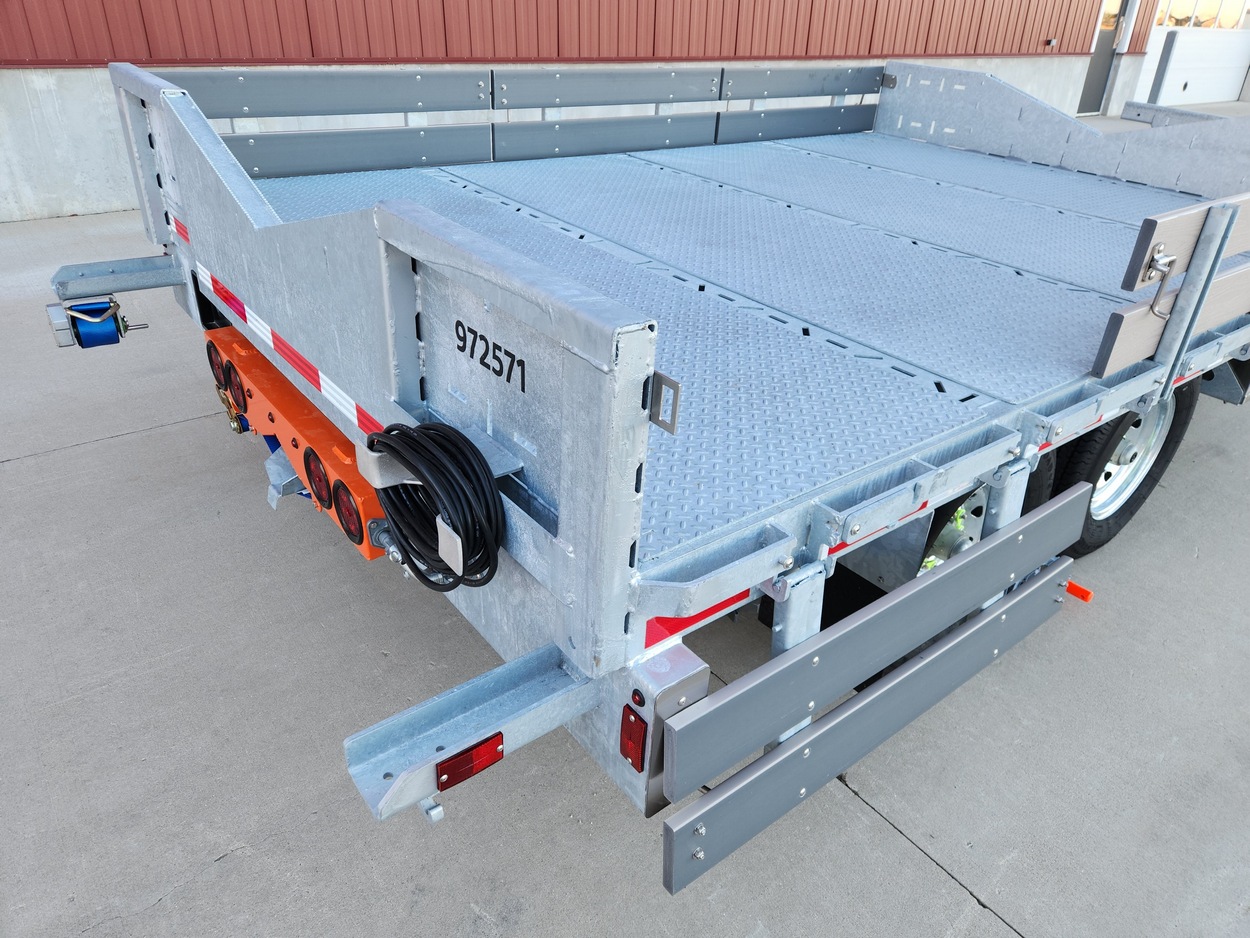

Rear Light Bar

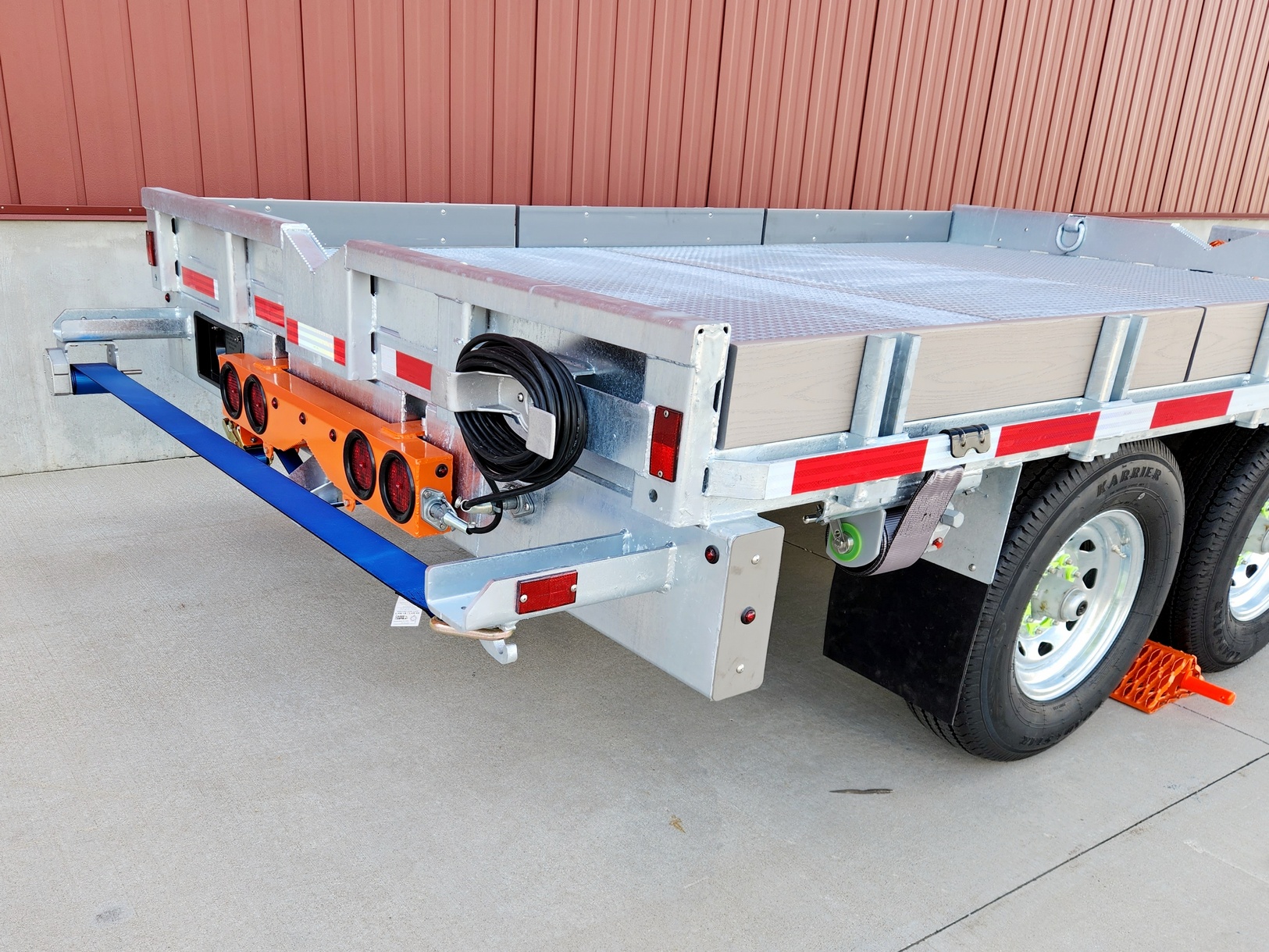

A rear lightbar is essential to communicate the length of your load and your intention to stop or turn. Our fluorescent orange powder coated aluminum light bar for Pole Trailers provides FMVSS 108 lighting at the rearmost pole position. It’s an integral part of the trailer, so it’s always there, ready and working. An exclusive Tread Grip lined “V” combined with a 2″ nylon ratchet binder provided on the light bar assures a firm hold on the pole. And note the optional flag holders and switched, 360-degree strobe. Best of all, it is lightweight and keeps your operators and equipment safe and legal. Please contact us if you’d like to make a purchase.

Winch Binder with Strap Choices

Ratchet-type binders are known as chin-busters and back-strainers for good reason. Finding that next tooth position to provide the right strength and torque is often frustrating and dangerous.

We offer self-locking, worm gear winch binders to eliminate a risk to safety with a 5500# capacity. They’re simple to use with the ability to hold tension at all times. With highly durable component materials and finishes, it is safer, easier to use and longer lasting than ratchet type binders. After thousands of installations in the field, they are tested and preferred by users across the U.S. and Canada. Our galvanized crank handle makes the operation smooth and simple. The 4″W nylon straps are color coded to identify length, for simple, correct replacement. Right-sized straps eliminate excessive strap tails after securement. Heavy duty hooks are installed opposite binders to secure the strap D-ring.

Care & Use

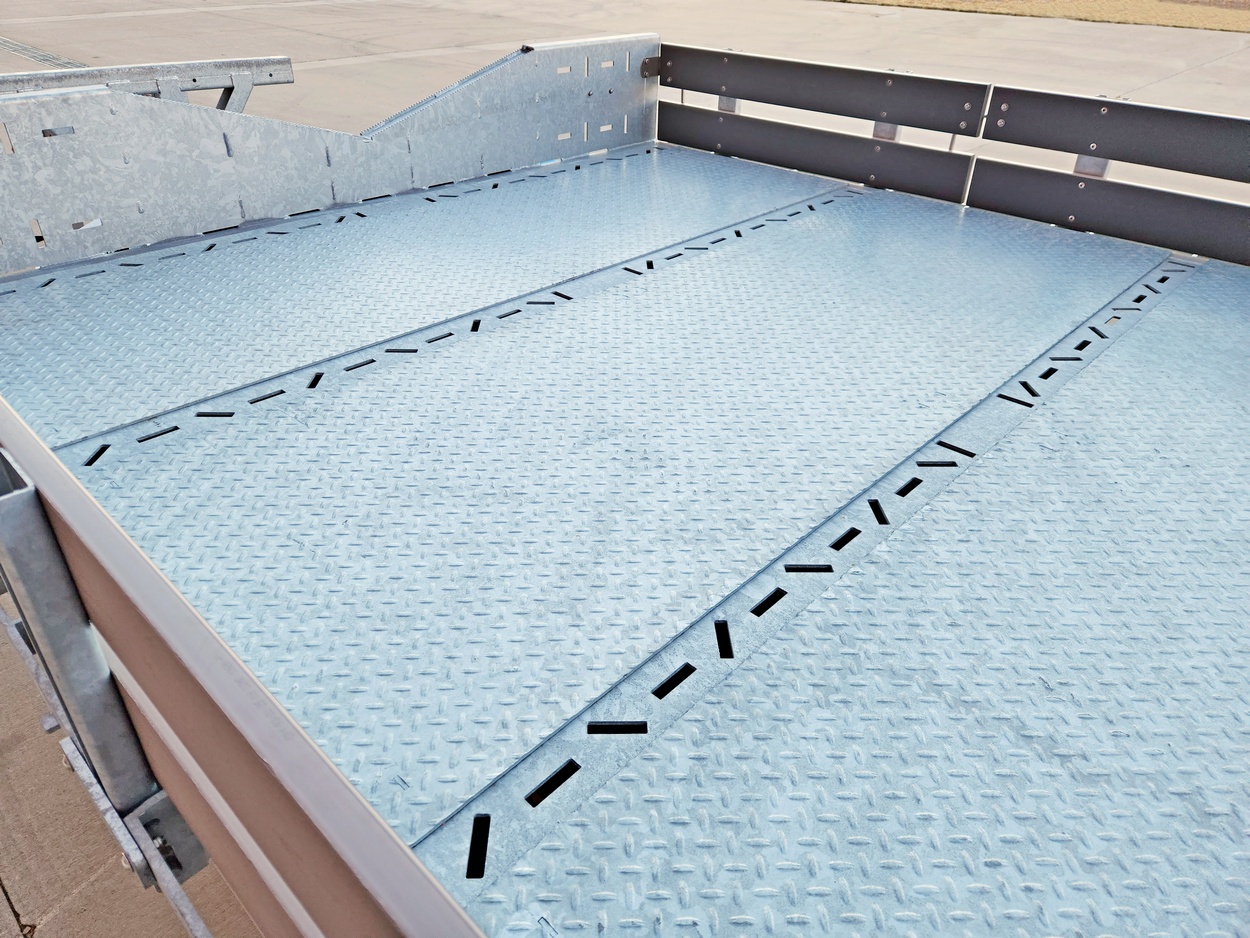

SmartPerf Lined Tongue Area

This smooth steel tongue area floor with a slot pattern offers drainage and a flat surface for material storage with attachment points for bungee or small straps.

Pole Muzzle

Contact us to discuss your application.

8805 Almag Outrigger Jack

The standard Model 8805 Almag Outrigger Jack offers simple, reliable use through better design and materials. With no fasteners and no rusting parts, simply move the bronze latch to raise and lower the Almag Jack Leg into position and replace the latch. It is that simple.

The Model 8805 Almag Outrigger Jack is standard on many of our utility construction trailers.

Bent Mainframes

Why are bent frame tubes so important?

Look at the frames on vehicle chassis.  You will find very little welding.  Engineering a design with fewer welds provides structural benefits and is an intelligent thing to do.

Our Bent Structural Tube Trailer Frame has superior, uniform strength throughout the frame. A welded trailer A-frame has stress concentrations at the weld area’s heat-affected zone. A welded A-frame cannot possess the toughness inherent in a continuous, bent tube frame.

Inspection of this type of weld area is challenging because the joint is hidden by multiple weld passes. While this is common for many weld areas, this critical area presents unique challenges. Correct and repeatable steps are necessary. Both sides of the frame must have correctly executed, beveled angle cuts so that they join perfectly with no gaps. At the joint, the beveled surfaces must create a V-groove with the correct dimensions to allow weld penetration. Importantly, none of these aspects can be inspected after welding the joint, nor can the strength of the frame be verified. Additionally, the welded area has a discontinuous surface that is more susceptible to rust and deterioration over time, affecting the strength of the frame.

Our Bent Structural Tube Construction has none of these variables. It is stronger than a welded A-frame every time.

All-Weather Wheel Chocks

Specify Sauber Mfg. Co. All-Weather Wheel Chocks for safety. The grip strut face locks wheels tight on all surfaces in all weather conditions. The chock face grips tight to the tire surface while the motion of the tire wedges the chock between the wheel and the ground. The orange urethane grip handle is highly visible and reminds users to deploy and retrieve it. It is comfortable and easy to grip with gloved or bare hands.

All-Weather Wheel Chocks are unconditionally guaranteed against breakage for the life of the equipment they protect. Available with holders for every application, Sauber All-Weather Wheel Chocks continue to protect people and property decades after we designed and patented them.

Wheel Nut Indicators

During their daily safety check, your operator will be immediately aware of two potentially dangerous conditions with a quick look at our standard wheel nut indicators.  The indicator may be pointing outside the circle pattern which will signal that a wheel nut has loosened. The indicator may also have started to blister and distort which indicates it has been exposed to temperatures above 240° which could be an indication of brake or bearing issues.  A simple feature, but one that makes a Sauber trailer simpler and safer to operate.

Warranty

Sauber Manufacturing leads the field with a 10-year, comprehensive, trailer and truck platform warranty. This warranty comes at no charge to our customers and we have the financial strength and integrity to back it up. Our warranty is an extension of who we are and demonstrates the quality of our builds.

• 10-Year Structural, parts & labor on all Sauber manufactured components
• 10-Year Galvanized finish warranty
• 3-Year Total parts & labor coverage
• 3rd Party mechanized equipment like liftgates, cranes, and hoists are covered under their respective manufacturers’ warranties
• Customer labor reimbursement @ $80/hour

Trailer Lighting Standards

We utilize an LED sealed beam/wiring system w/ stop/turn/tail lights recessed in fully enclosed tube bumper to meet FMVSS 108. Sealed wiring harnesses with no junction boxes or spliced connections. SAE 7-way socket protected top sides and back w/ Almag housing. 1100-52 sealed breakaway w/ charging circuit and LED battery condition indicator w/ 450 C.C.A. maintenance free battery. All trailers include our standard 12′ Coiled Jumper Cord w/ Zinc Die Cast 7-Way SAE Plugs.

Galvanizing

Hot dipped galvanized finish is standard across our entire line of trailers.

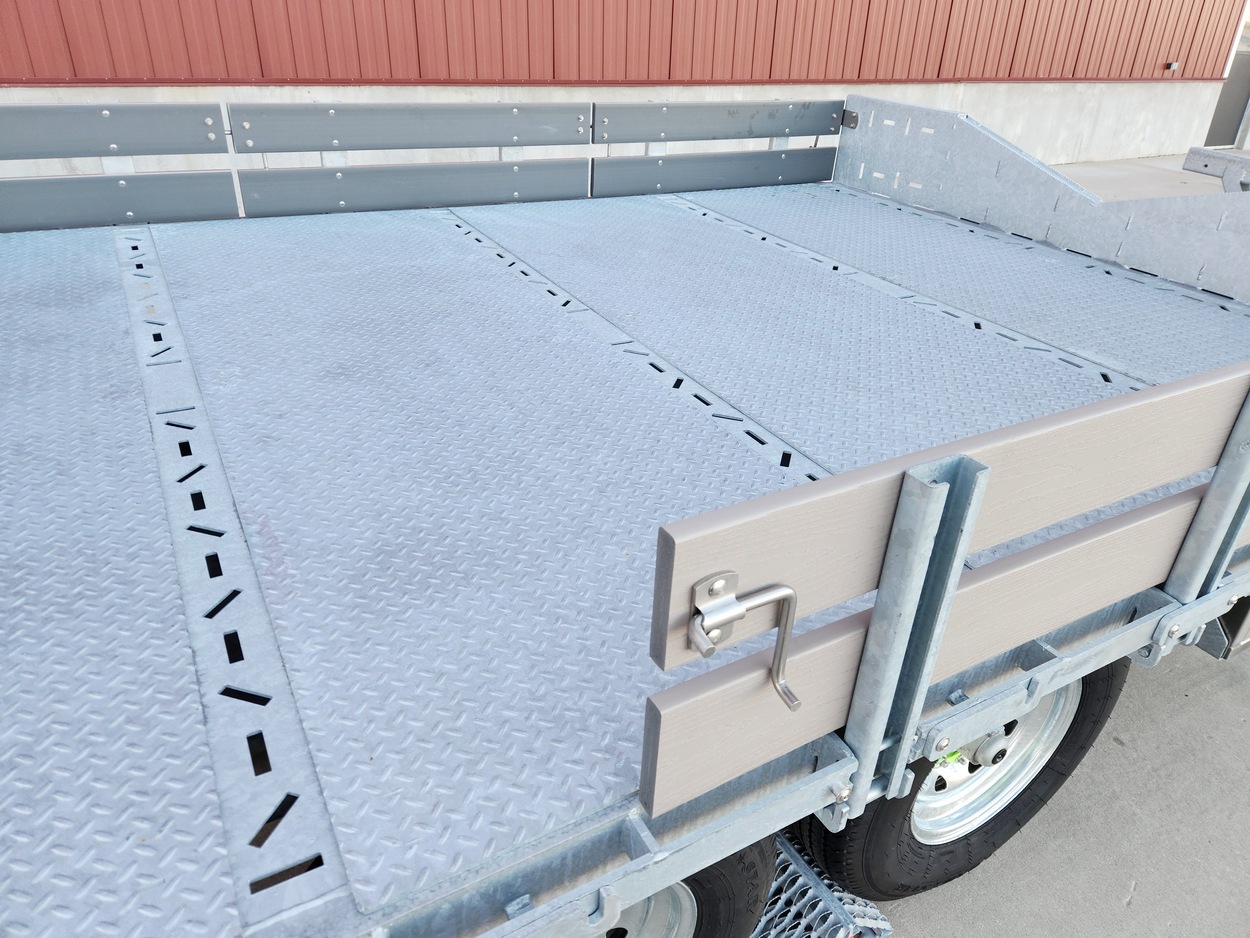

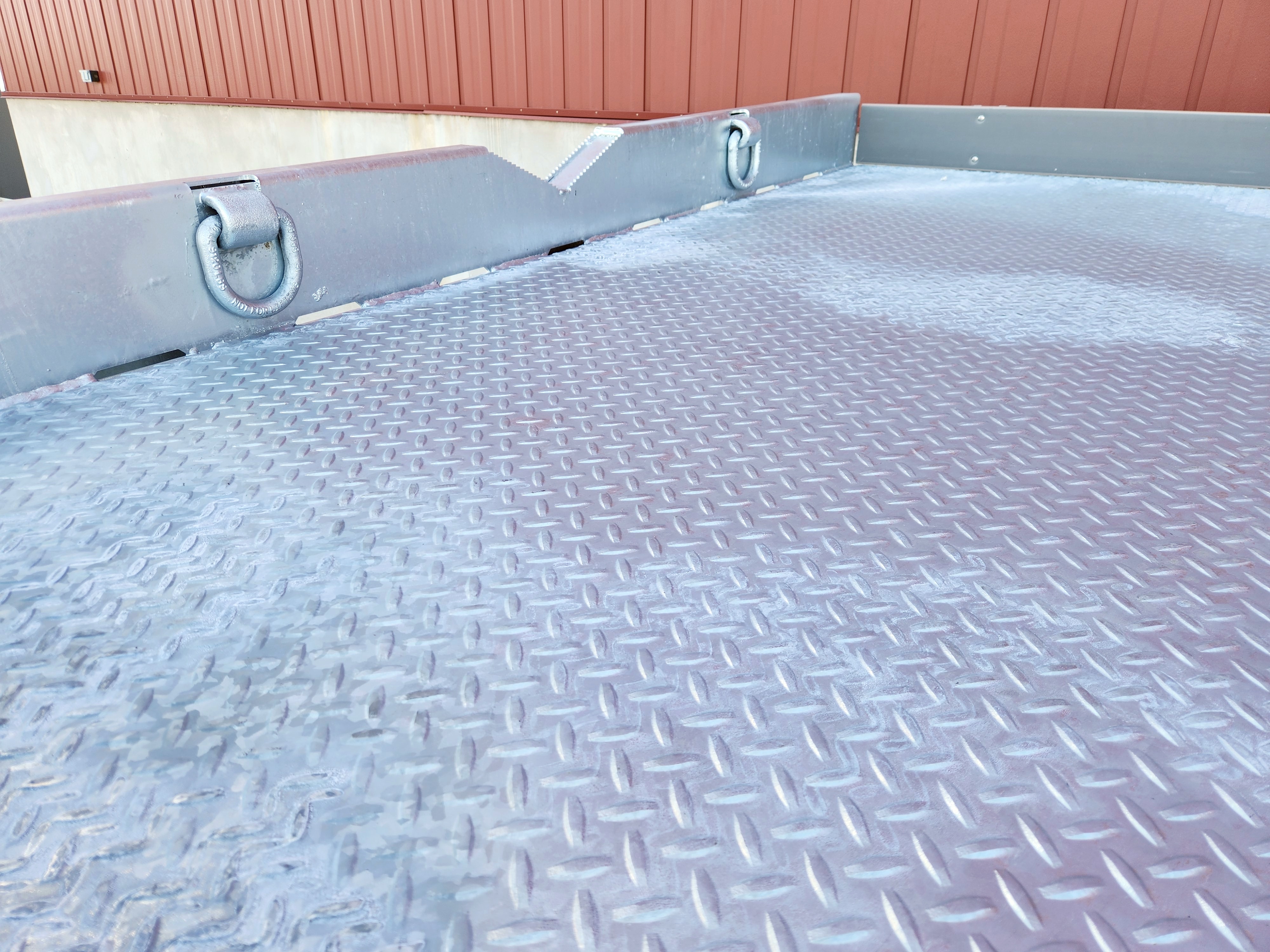

Experience counts and you can count on weldments and equipment designs which optimize the benefits of hot dipped galvanizing. We include bolt-on cargo decking that is flat and safe to walk on. In addition, we provide accessories in hot dipped galvanized whenever feasible. Often, we’ll provide axle components in galvanized finish.  In fact, all our trailer wheels are galvanized as well.

Every day, customers trust our experience in galvanizing, innovative features, and durable design to work with them on their next successful trailer application.

Comparison of metalizing vs Hot Dip Galvanizing

Galvanized Metal Repair

Galvanizing Technical

Safety Chains

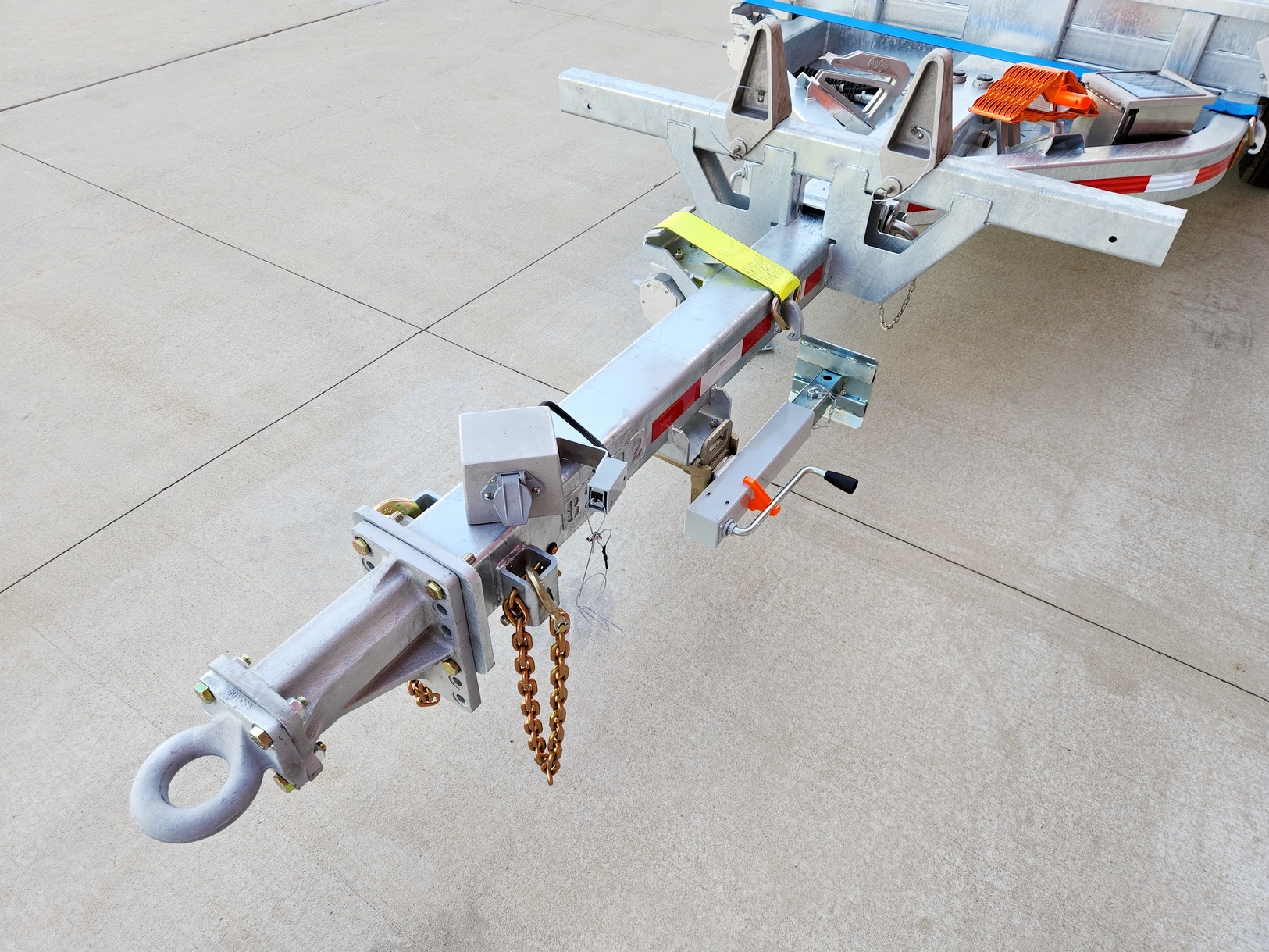

Chain traps secure the safety chain at two links for ultimate holding power. Our unique method of installation doesn’t require connecting links or welding of the chain, compromising its integrity. Chain traps and complete Grade 70 chain and Grade 70 Hook assemblies are available.

Safety Chain & Drawbar Guidelines
