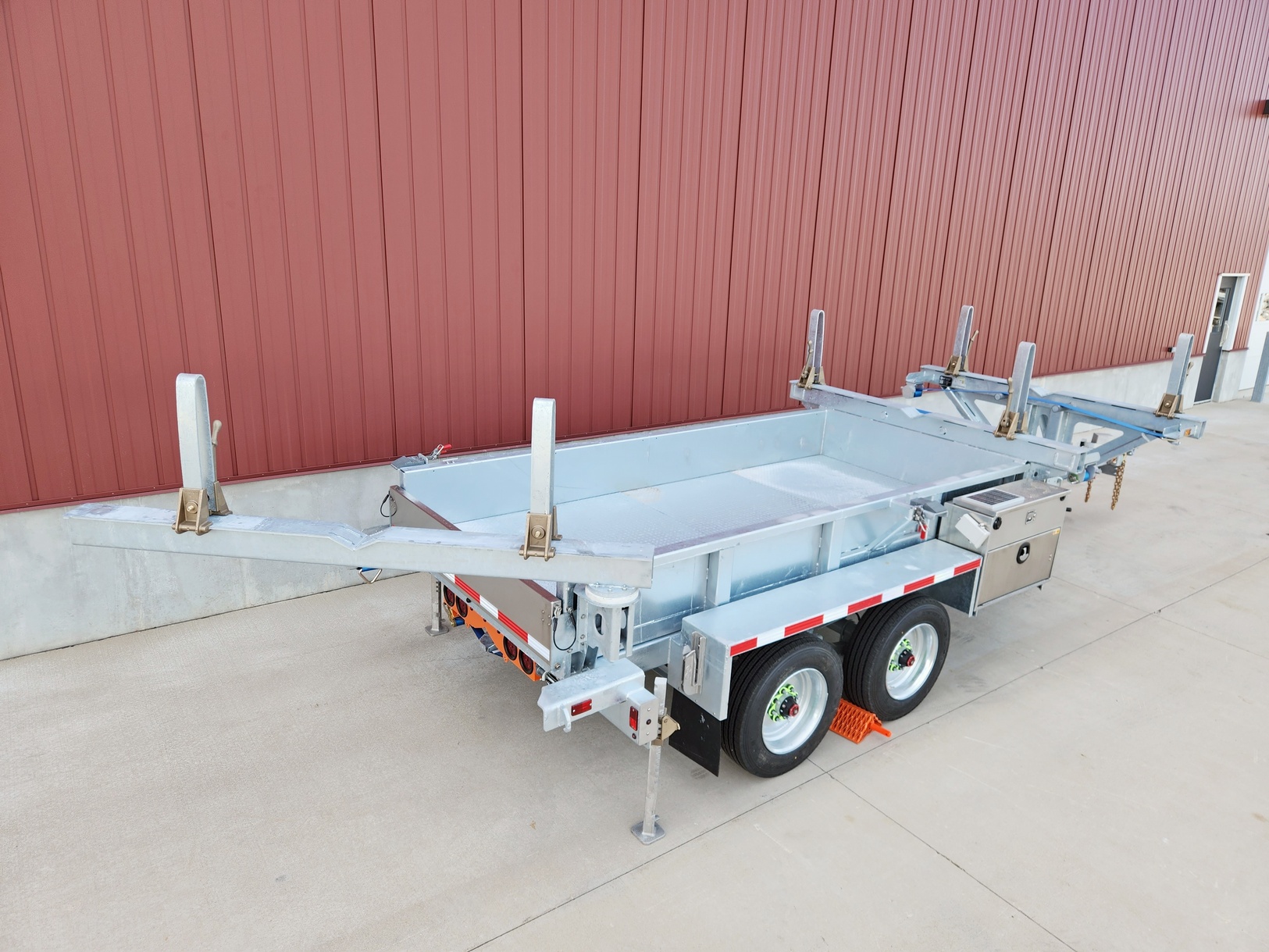

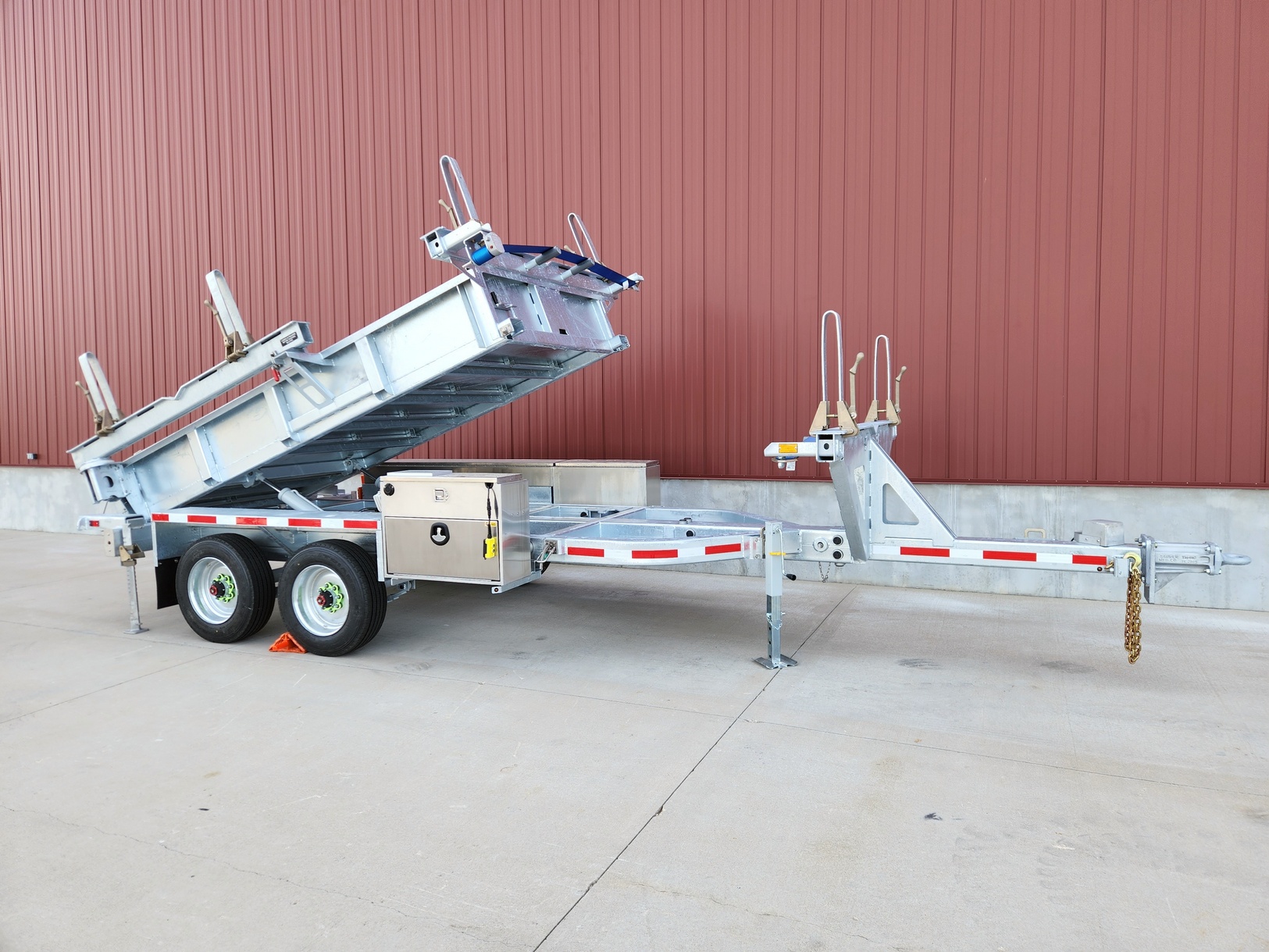

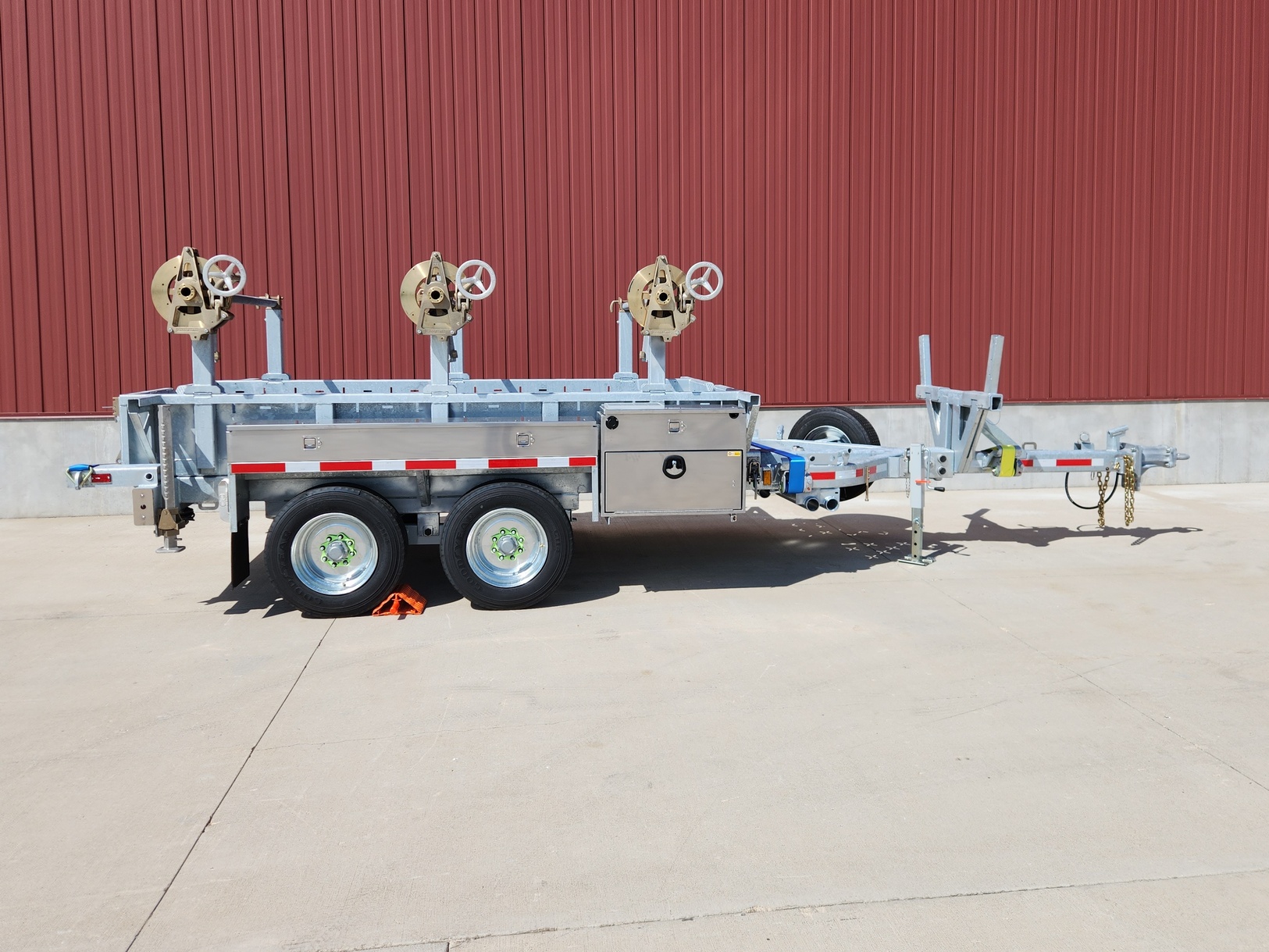

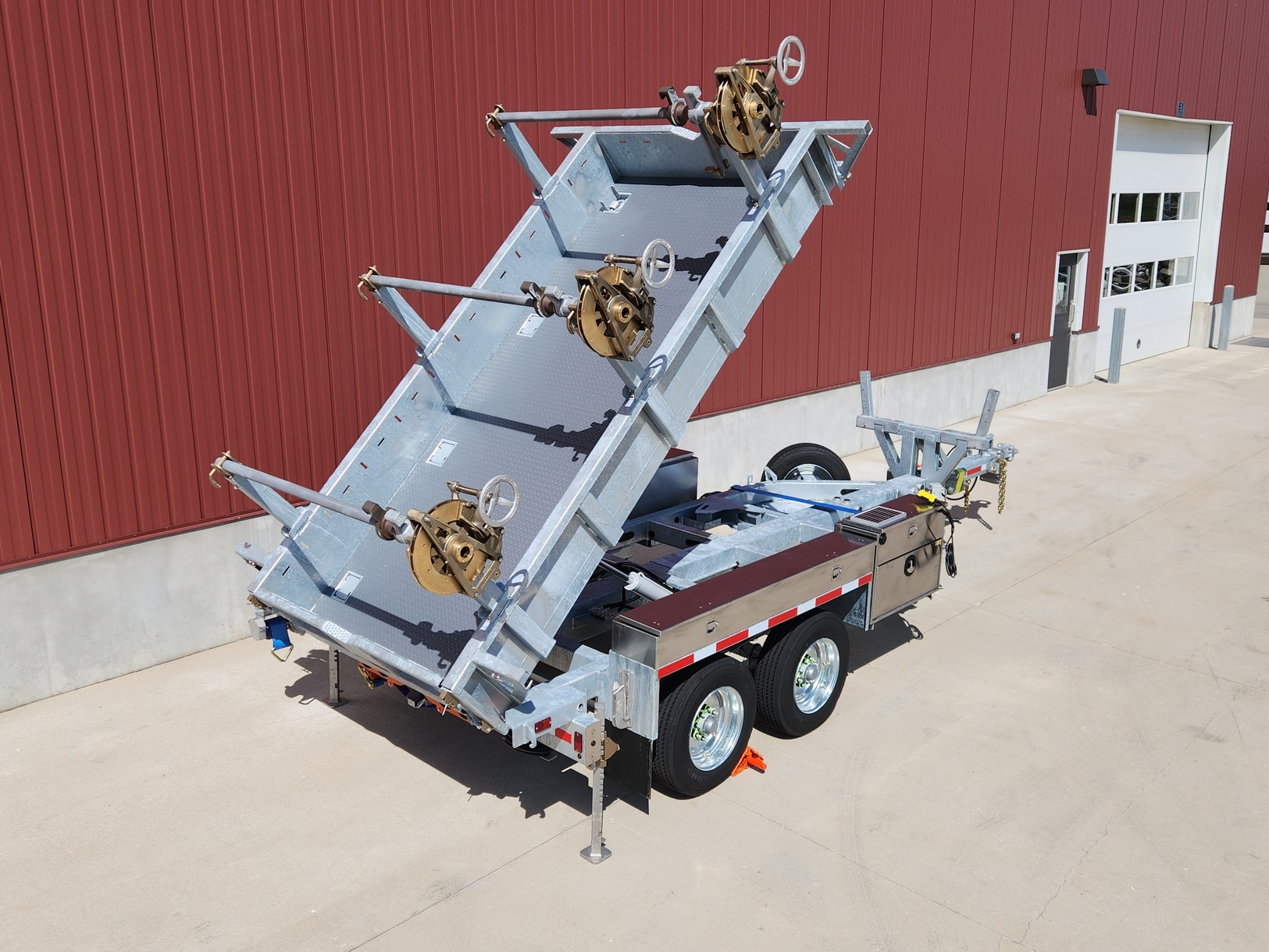

Pole, Reel & Dump Trailer

Model 1521-PRD

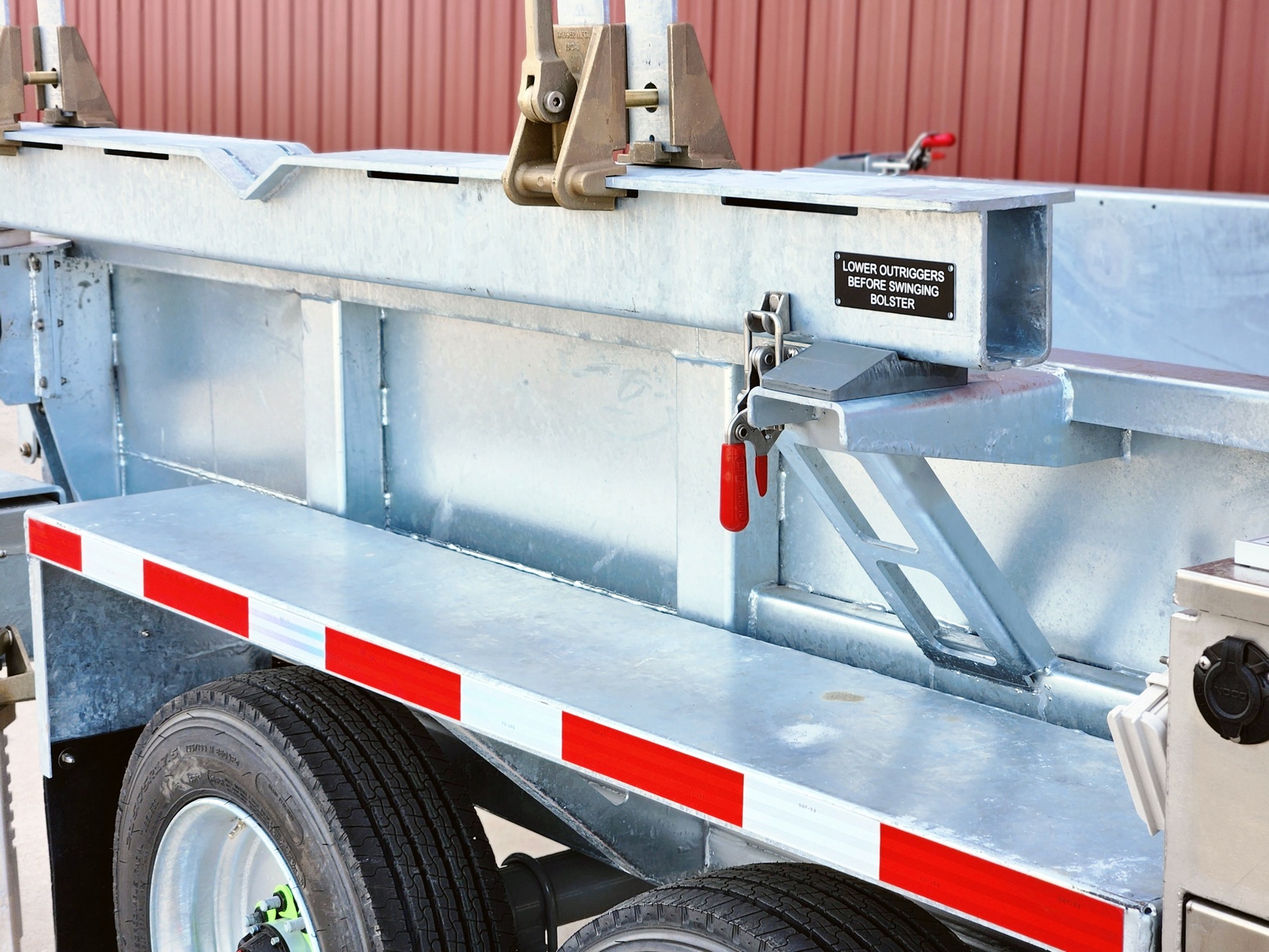

Tackle many jobs with one trailer with the Model 1521-PRC Combination Trailer. You’ll improve both your fleet and crews' capabilities to haul cargo, poles, tension conductor and transport material via a dump bed. The Sauber SmartPower 12VDC Electric/Hydraulic Power Source provides the capacity you need. The standard bent tube frames, hot dipped galvanized finish and stainless steel pivot pins with oil lite bushings ensure a low maintenance, long life. Work with us to configure the right design including tensioning and retriever options, custom cargo space and special pole loads. We have the experience and expertise to manufacture the trailer that matches your work.

Capacity: 11700 lbs
Retracted: 23"L x 96"W
Extended: 32'L x 96"W
Axle: (2) 7000 lbs
Brakes: 12" x 2", High Performance
Suspension: (2) 7000 lbs Torflex
GVWR: 16450 lbs
Tires: (4) 235/80R16, LR E
Rims: 6.00 x 16.0, Disc
