Hubodometers

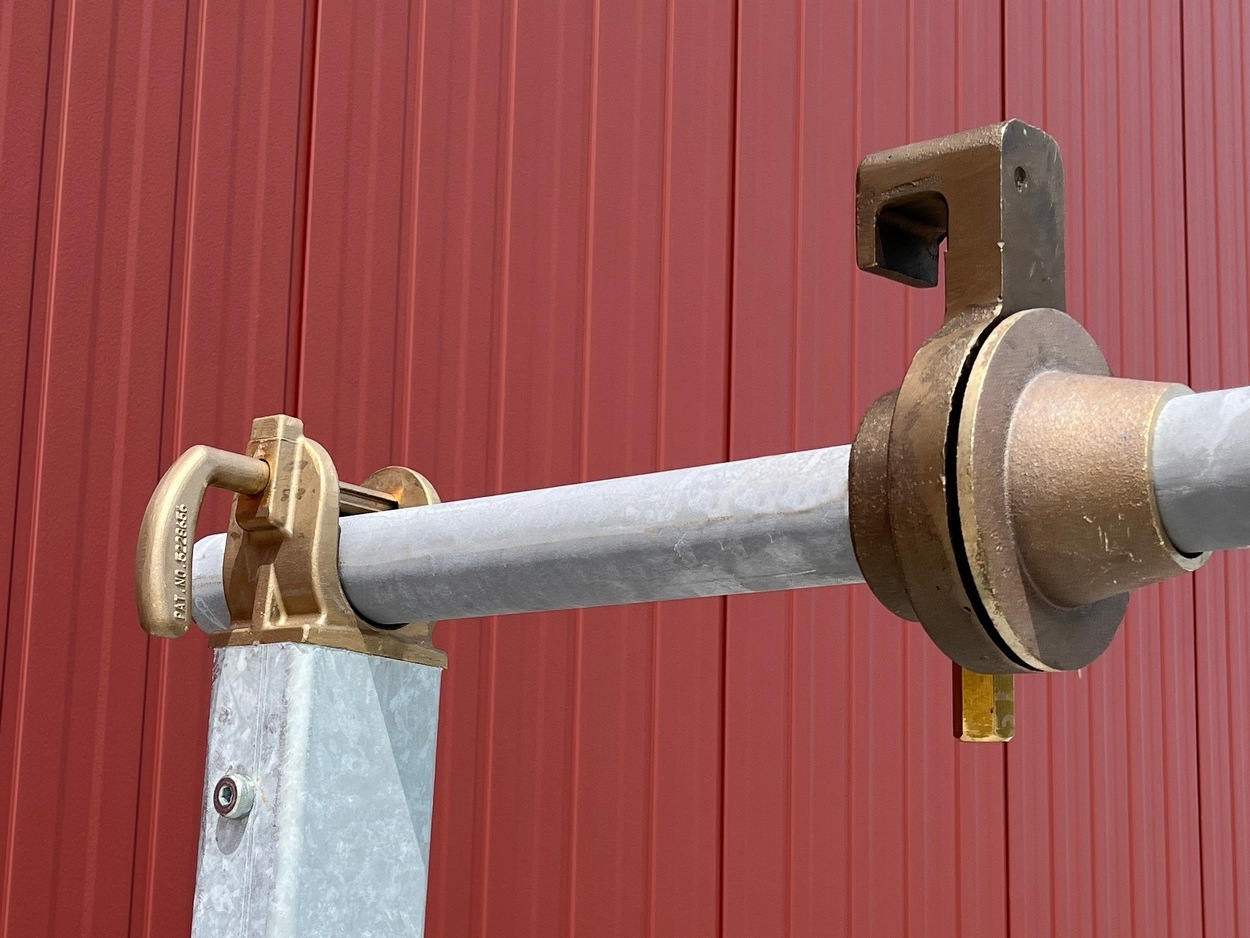

EZ-Up Jack Positioning Collar Parts
The Sauber Mfg. Co. Positioning Collars are easy to use with durable materials. If you do need replacement parts, please contact us. Refer to the drawing below for component parts information.
Solar Battery Box Parts
The Model 8854 4-Watt Solar Battery Box is a highly durable component which should last the lifetime of your trailer. When jobsite realities make repair parts necessary, contact us. Refer to the parts drawing below to identify what you require.

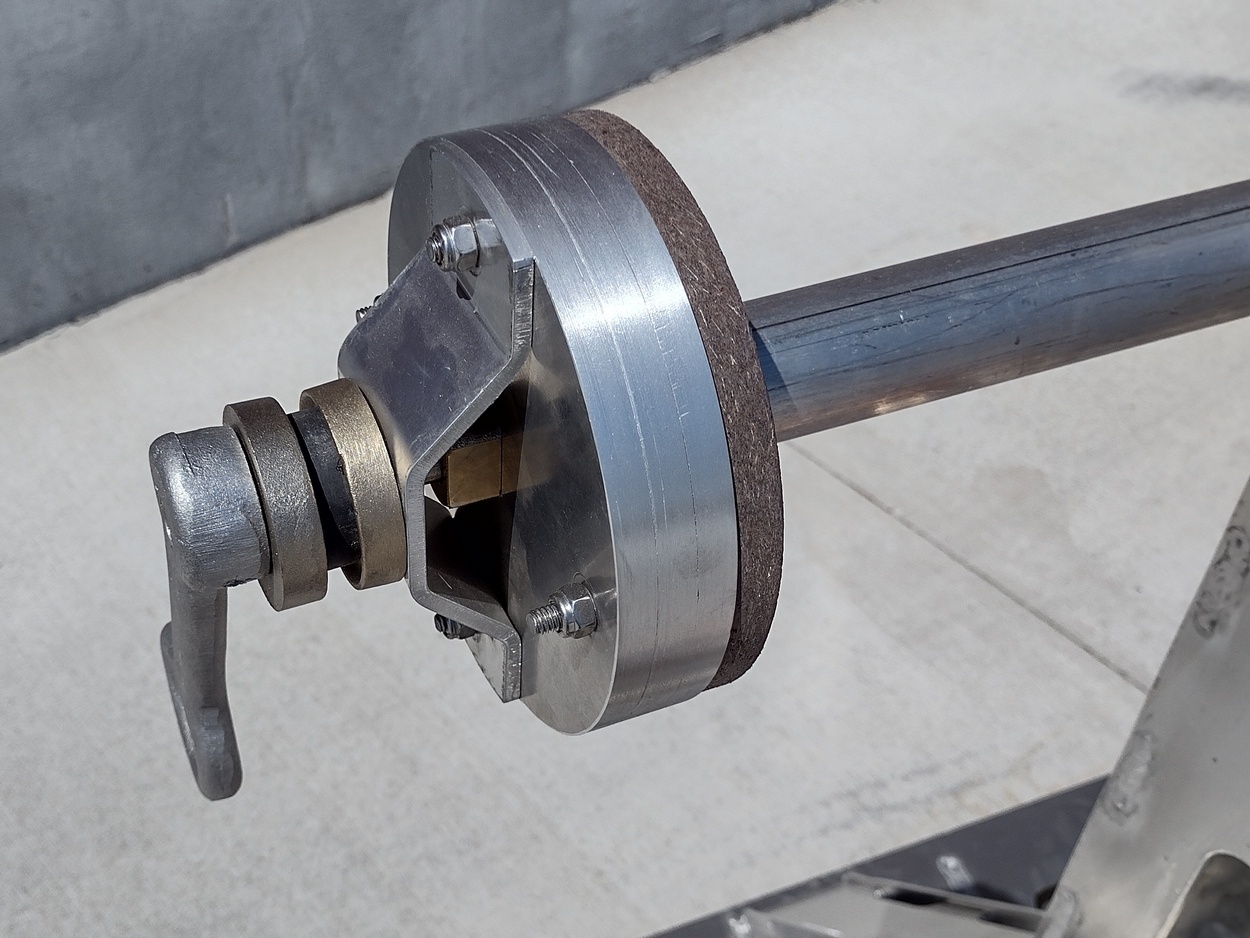

8″ Overspin Disc Brake Parts
Prevent free-spin to keep your conductor on the reel. This small, 8″ diameter ventilated bronze disc brake w/ manually activated calipers is capable of 100 ft-lbs. of overspin torque. If your brake requires replacement parts, just reference the information below when you contact us.

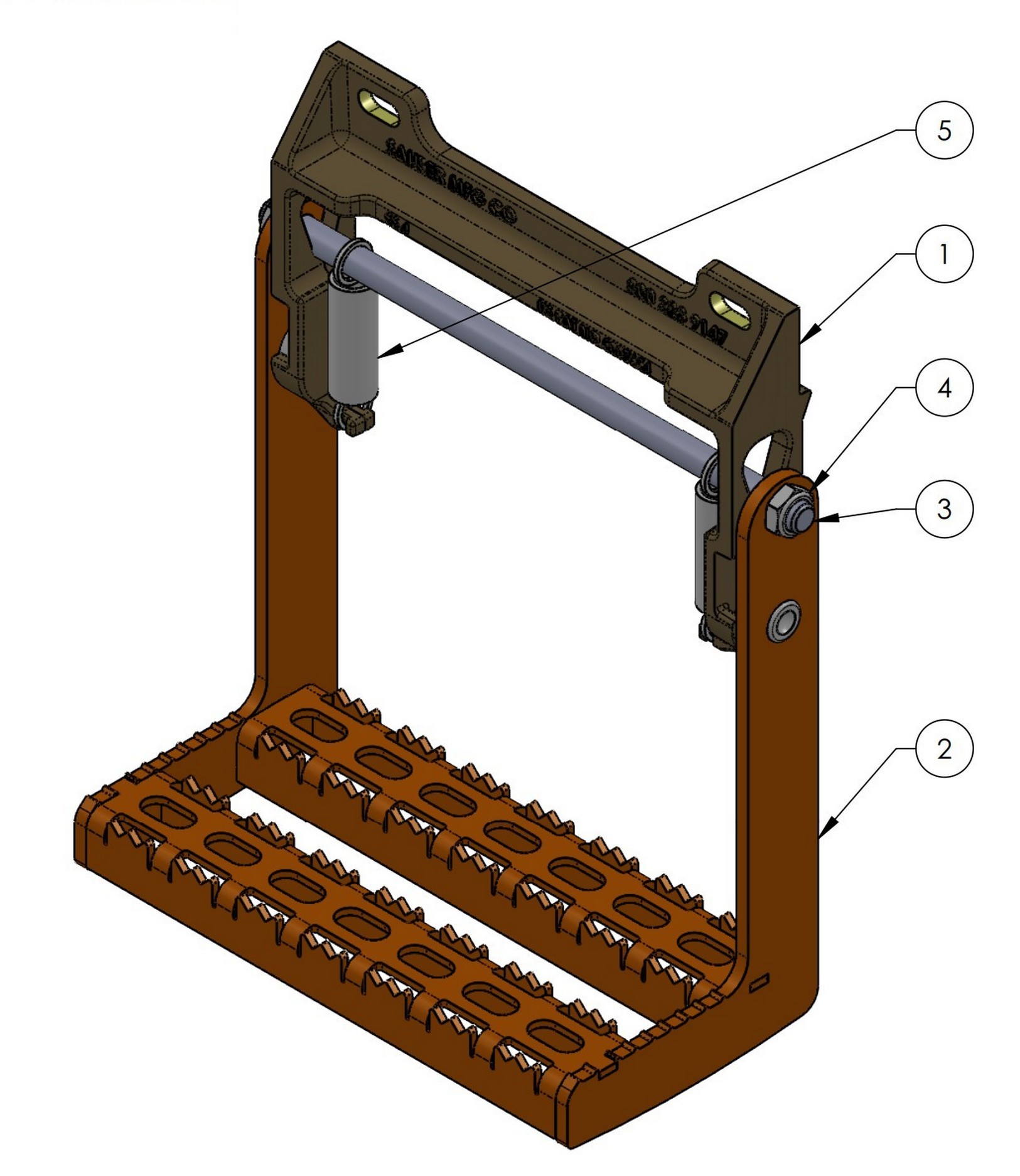

Safety Swing Step Parts
The Model 8467 Series Swing Away Steps are a go-to durable step common to many fleets in North America. If your step requires replacement parts, reference the information below when you contact us.
| Model | Item 1 | Item 2 | Item 3 | Item 4 | Item 5 |
|---|---|---|---|---|---|
| 8467-7 | 10028 Mounting Bracket | 10032 Step Weldment - 7"L | 10029 Retaining Shaft | 10031 Extension Spring | 10030 Lock Nut |
| 8467-9 | 10028 Mounting Bracket | 10033 Step Weldment - 9"L | 10029 Retaining Shaft | 10031 Extension Spring | 10030 Lock Nut |
| 8467-9B | 10028 Mounting Bracket | 19342 Step Weldment - 9"L x 7"D | 10029 Retaining Shaft | 10031 Extension Spring | 10030 Lock Nut |
| 8467-11 | 10028 Mounting Bracket | 10034 Step Weldment - 11"L | 10029 Retaining Shaft | 10031 Extension Spring | 10030 Lock Nut |
| 8467-A | 10028 Mounting Bracket | 10035 Step Weldment - Adjustable | 10029 Retaining Shaft | 10031 or 10027 Extension Spring | 10030 Lock Nut |
| 8467-NFB | 13267 Mounting Bracket | 19509 Step Weldment - 8"L | 19175 Retaining Shaft | 10027 Extension Spring | 10030 Lock Nut |
| 8467-NF7 | 13267 Mounting Bracket | 19174 Step Weldment - 5 13/16"L | 19175 Retaining Shaft | 10027 Extension Spring | 10030 Lock Nut |
| 8467-NF9 | 13267 Mounting Bracket | 19403 Step Weldment - 5 13/16"L | 19175 Retaining Shaft | 10027 Extension Spring | 10030 Lock Nut |
| 8467-NF15 | 13267 Mounting Bracket | 19407 Step Weldment - 13 13/16"L | 19175 Retaining Shaft | 10027 Extension Spring | 10030 Lock Nut |
Puller Turntable Parts
Service your Model 1570 & 1670 Pullers with the help of the drawing linked below. Contact us with questions or to place your order.
Turret Parts
If your Sauber Mfg. Co. Turret Reel Carrier requires maintenance help, please contact us. The reference drawings below will help ensure the right parts are easily selected.
| Reference | Item | Description |
|---|---|---|
| ORIGINAL STYLE TWIST LOCK | ||
| 21 | 1 | 3/8" SST LOCK WASHER |
| 20 | 1 | 3/8 - 16x3/4"L SST SOCK T HD CAP SCREW |
| 19 | 1 | 1564ST - 5 CENTER LOCK ROD END |
| 18 | 1 | 1564ST - 3&4 CENTER HANDLE END |
| 17 | 1 | 1564ST - 1&2 CENTER ACTUATION WELDMNT |
| 16 | 1 | 1564ST - 3 CENTER LOCK ROD |
| 15 | 1 | 1564ST - 1&2 CENTER LOCK HANDLE |
| 14 | 4 | 1/2" - 13 GR.C LOCK NUT |
| 13 | 2 | 1/4" - 20 SST HEX BOLT 1 LG |
| 12 | 4 | 1/2" - 13 GR.8 HEX BOLT 1-1/2 LG |
| 11 | 1 | 5240ST FRONT / REAR LOCK HANDLE |
| 10 | 1 | 3/8" - 16 SST LOCK NUT |
| 9 | 1 | 2685ST HANDLE LOCKING TAB |
| 8 | 2 | 3/8 FLAT WASHER |
| 7 | 16 | 5/8 - 11 GR.8 HEX BOLT 3-1/2 LG |
| 6 | 15 | 5/8 - 11 GR.8 HEX BOLT 2-1/2 LG |
| 5 | 1 | 13998 TURNTABLE BEARING W/ EXT GEAR |
| 4 | 1 | 5191ST LARGE TURRET LOCK CASTING |
| 3 | 1 | 5180ST LARGE SLIDE CASTING |
| 2 | 1 | 5201ST or 5211ST H-D TURRET MOUNTING |
| 1 | 1 | 4045GP TURRET REEL CARRIER FRAM |
| CURRENT STYLE CAM LOCK | ||
| 20 | 1 | 15060 1/2-13 HEX NUT 18-8 |
| 19 | 1 | 1564ST - 5 CENTER LOCK ROD END |
| 18 | 1 | 1564ST - 3&4 CENTER HANDLE END |
| 17 | 1 | 1564ST - 1&2 CENTER ACTUATION WELDMNT |
| 16 | 1 | 6157ST - 2 CENTER LOCK HANDLE |
| 15 | 1 | 6157ST - 1 CENTER LOCK HANDLE |
| 14 | 1 | 3/8" SST LOCK WASHER |
| 13 | 1 | 3/8 16X3/4" L SST SOCKT HD CAP SCREW |
| 12 | 4 | 11006 1/2"-13 GR.8 HEX BOLT 1-1/2 LG |
| 11 | 1 | 15937 S2552 TOGGLE CLAMP-TYPE LOCK ROD |
| 10 | 4 | 11003 1/2"-13 GR.C LOCK NUT |
| 9 | 1 | 15968 - STAINLESS STL HD TOGGLE CLAMP |
| 8 | 1 | 10030 1/2-13 NYLN INSERT LK NUT 18-18 |
| 7 | 16 | 5/8" - 11 GR.8 HEX BOLT 2-1/3" LG |
| 6 | 15 | 5/8" - 11 GR.8 HEX BOLT 2-1/2" LG |
| 5 | 1 | 13998 TURNTABLE BEARING W/EXT GEAR |
| 4 | 1 | 16211 5191ST LARGE TURRET LOCK CASTING |
| 3 | 1 | 16212 5180ST LARGE SLIDE CASTING |
| 2 | 1 | 5201ST, 5211ST, 68931F H-D TURRET MTG |
| 1 | 1 | 6611ST TURRET REEL CARRIER FRAME |
8805 Outrigger Stabilizer Jack Parts
Non-rusting and durable, thousands of the Model 8805 Almag Outrigger Jacks are in use today. If you need a complete jack or replacement parts, just reference the details below and contact us to place your order.
Model 8805 Outrigger Jack Assembly -Complete
Item 10699 Outrigger Jack Bronze Housing
Item 10655 Almag Outrigger Jack Leg Only
Pole Stanchion Parts
Our bronze and galvanized stanchions for Pole Trailers provide a convenient way to position poles. Each is equipped with an over-center, variable tension, cam lock assembly. Because they are completely non-rusting, they won’t seize to the bolsters like old-fashioned stanchions can. If you need replacement parts, reference the drawing below and contact us.
Hydraulic Power Source Parts
Sauber Mfg. Co. Model 1010 Series Hydraulic Power Sources are built to last in challenging utility work environments. The specifications speak for themselves with best-in-class, vertical-shaft engines, in-tank submerged pump and controlled performance. If you need maintenance parts, please reference the information below and contact us.
| Reference | Item | Description |
|---|---|---|
| 01B | 10802 | Honda GXV390DAET 13 HP Engine |
| 01C | 10441 | Honda GXV160A1 5.5 HP Engine |
| 02A | 10805 | Engine Couple w/ Keyway - 1" |
| 02B | 10806 | Engine Couple w/ Keyway - 7/8" |
| 02C | 15088 | Engine Couple w/ Keyway - 1.125" |
| 03 | 10807 | Couple Rubber Insert - All Models |
| 04A | 10808 | Pump Couple w/ Keyway - 5/8" |
| 04B | 10809 | Pump Couple w/ Keyway - 1/2" |
| 04C | 15355 | Pump Couple w/ Keyway - 3/4" |
| 05A | 10810 | Hydraulic Pump - .122 cu-in |
| 05B | 10811 | Hydraulic Pump - .188 cu-in |
| 05C | 10812 | Hydraulic Pump - .305 cu-in |
| 05D | 10813 | Hydraulic Pump - .430 cu-in |
| 05E | 10814 | Hydraulic Pump - .580 cu-in |
| 05F | 10815 | Hydraulic Pump - .680 cu-in |
| 05G | 10816 | Hydraulic Pump - .810 cu-in |
| 05H | 10817 | Hydraulic Pump - 1.00 cu-in |
| 05I | 10818 | Hydraulic Pump - 1.20 cu-in |
| 06A | 10819 | Tank Cover w/ Pump Bracket - Almag - 18 Gallon |
| 06B | 10820 | Tank Cover w/ Pump Bracket - Almag - 7 Gallon |
| 07A | 10822 | Tank Base for Almag cover - 18 Gallon |
| 07B | 10823 | Tank Base for Almag cover - 7 Gallon |
| 08A | 10825 | Tank Gasket - Buna .250" ORing - 9'L (Steel Cover) |
| 08C | 10826 | Tank Gasket - Buna .375" ORing - 9'L (Almag Cover) |
| 08B | 10827 | Tank Gasket - Trim Lok - 9'L |
| 09 | 10828 | Sight Gauge |
| 10 | 10829 | Oil Cooler |
| 11 | 10830 | Sump Strainer |
| 12 | 10832 & 10698 | Filter Housing & Condition Gauge |
| 13 | 10832 | Filter Element |
| 14 | 10698 | Filter Back Pressure Gauge |
| 15 | 10833 | Male Quick Couple |
| 16 | 10834 | Female Quick Couple |
| 17A | 10606 | Throttle/Choke Control - 10'L |
| 17B | 12009 | Throttle/Choke Control - 25'L |
| 18A | 10835 | Control Panel - 1010-Jr Steel |
| 18C | 10837 | Control Panel - Engraved Poly |
| 19 | 10838 | Panel Housing - Aluminum |
| 20 | 10839 | Filler Breather |
| 21 | 10840 | Pressure Relief Block |
| 21A | 10841 | Flow Needle Cartridge |
| 21B | 10842 | Pressure Relief Cartrdige |
| 22 | 17915 | Flow Meter |
| 23 | 10844 | Pressure Gauge |
| 24 | 10845 | Panel Light - 15011 |
| 25 | 10846 | Key Switch w/ (2) Keys |
| 26C1 | 15099 | Inductive Hour/Tach Meter w/ 3' Cord - 4/1/04 & After |
| 26C2 | 15344 | Inductive Hour/Tach Meter w/ 9' Cord (Remote Panels) |
| 27A | 10849 | Flow Adjustment Knob w/ Set Screws |
| 27B | 12994 | Pressure Adjustment Knob w/ Set Screws |
| 28A | 10850 | Steel Fuel Tank - 3.0 Gallon |
| 28B | 10851 | Poly Fuel Tank - Red - 6.6 Gallon |
| 28B1 | 11539 | Nylon Replacement Fuel Cap |
| 28C | 10853 | Steel Fuel Tank - Painted - 1.0 Gallon |
| 29 | 10854 | Starter Solenoid - 70902 |
| 30A | 10433 | Vinyl Power Source Cover - Large - 1010/1010-SR (not shown) |
| 30B | 10434 | Vinyl Power Source Cover - Small - 1010JR (not shown) |
| 31 | 10855 | Rubber Mounts - 64875K91 |
| 32 | 10856 | Fast Gasket Compound - Red 0409011 (11-OZ Tube) |
Tensioning Brake and Retriever Parts
The Model 1602 All Bronze Brake offers 3000 ft-lbs of resistance in continuous use. To keep your brake at top performance, contact us for repair and replacement components. Factory Maintenance/Inspection recommended at approximately 2500 hours of use.
| Reference | Item | Description |
|---|---|---|
| Tensioning Brake Components | ||
| AA | 10335 | Brake Assembly Complete - specify for XX Dia Bar - 136 lbs |
| 01 | 19725 | 5/8"-18 Thin Nylon Nut - 18-8 |
| 02 | 10336 | 1602 Series Brake Pad Lining |
| AB | 10337 | Tensioning Adjustment Assembly (includes items 03/04/05/06/07) |
| 03 | 10338 | Tensioning Adjustment Wheel |
| 04 | 10341 | Tensioning Adjustment Shaft |
| 05 | 10342 | Tensioning Adjustment Spring |
| 06 | 10343 | Tensioning Adjustment Nut |
| 07 | 10344 | Set Cup Washer w/ Insert |
| 27 | 10345 | Bronze Disc w/ hub offset taper - 3/8" Holes - 26 - Current - Specify 3.50" or 3.75" hub diameter |
| 28A | 10347 | Inside Casting w/ 3.75" Bore - BC-1 - Current (specify reel bar diameter) |
| 28C | 10349 | Inside Slide Casting w/ 3.75" Bore - BC-1 (specify reel bar diameter) w/ 4237ST casting modifications for sliding brake mechanism |
| 29 | 10350 | Outside Casting w/ 3.50" Bore - BC-2 |
| 30 | 10351 | Clamp Casting - BC-3 |
| 32 | 10352 | Right Caliper Arm - 101173RH |
| 33 | 10353 | Left Caliper Arm - 101172LH |
| 34-35 | 10355 | Brake Shoe Plate Kit w/ Lining |
| 36 | 10356 | Stainless Steel Pin - Lower - 2.35"x.75" |
| 37 | 10357 | Stainless Steel Pin - Upper - 3.875"x.75" |
| 62 | 10358 | 8 Upright Slide Casting - BRKS-1 w/ 4240ST machining (for sliding brake mechanism - not shown) |
| 63 | 15799 | Flat Washer 5/8- Thick -18-8 |
| Frame Components | ||
| AC | 10359 | Frame Assembly Complete - Includes Items 13/15/38 |
| 13 | 10360 | A-Frame Weldment |
| 14 | 10361 | Set Uprights - 36"L |
| 15 | 14689 14688 | 2 1/4" Generation II Saddle w/ Retainer 2 1/2" Generation II Saddle w/ Retainer |
| 38 | 10363 | Bronze Keeper Pin - Grooved - SP18 - (2) Required |
| 59 | 10364 | Saddle Set Screw - Stainless - 44541 |
| 60 | 10365 | Saddle Retainer Clamp w/ Fastener - 1032ST (not shown) 1/2" Grade 8 Bolt : 130-135 ft-lbs torque 5/8" Grade 8 Bolt: 140-145 ft-lbs torque |
| Reel Bar Components | ||
| AD | 10340 | Reel Bar Assembly Complete - 72"O.A.L. - Includes Items 16/17/18 |
| 16 | 10366 | Power Arm - PA1 |
| 17A | 10367 | Reel Insert w/ Grounding Lug - RBD - 2749ST (4.25" OAL x .875" Dia) |
| 17B | 10368 | Reel Insert - RBD2 - 3721ST (5.125" OAL x 1.25" Dia) |
| 61 | 10369 | Brass Set Screw 1.25" x.50" - 2545ST-1 (not shown) |
| 18 | 10370 | Reel Bar Knuckle |
| Reel Positioning Collar Components | ||

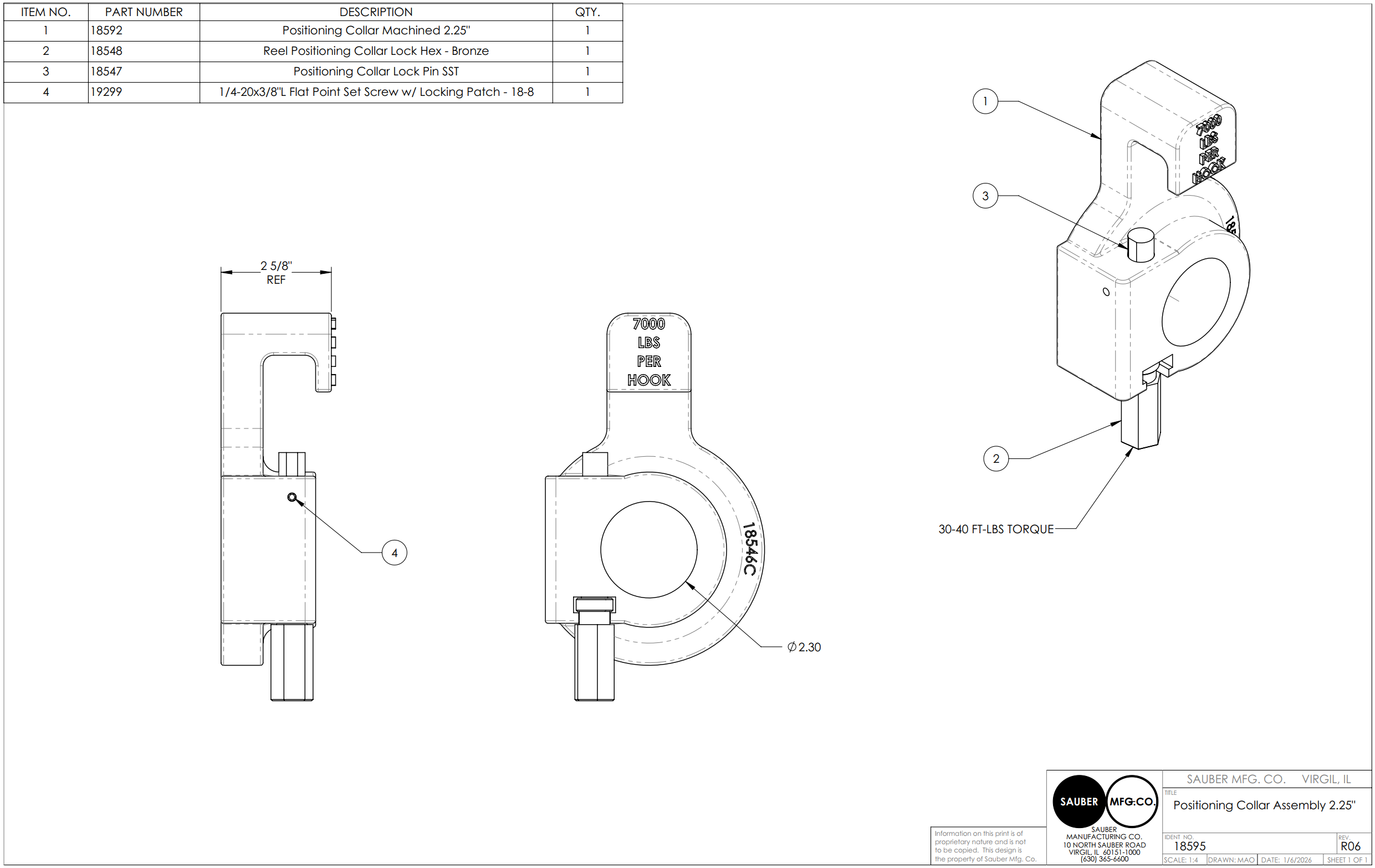

| 18595 | Reel Positioning Collar w/ Hook – 2.25” Sizes From 2.0”-3.0” Available |
|
| 22 | 18592 | Positioning Collar Casting Machined - 2.25" |
| 23 | 18547 | Positioning Collar Tapered Lock Pin - SST |
| 24 | 10972 | 1/4-20x1/2 Socket Set Screw - 18-8 |
| 25 | 18548 | Positioning Collar Lock Hex - Bronze |
| 31A | 10387 | Tapered Insert Sleeve - 2.5"-3.4" |
| Take-Up/Retriever Components | ||
| AA | 10388 | Engagement Hub Assembly - Includes Items 47/50/51/52/53/54/58 |
| 55 | 10389 | Motor Housing - Bronze - NBR-1 |
| 41 | 12430 | Hydraulic Motor - Standard |
| 56 | 10391 | Hydraulic Motor - Turbo - 104-1143 |
| 57 | 10392 | Hydraulic Motor - 2-Speed - 700-258-AS-0-SOL |
| 42 | 11306 | 1-Section Full Flow Control Valve - Tandem |
| At Valve | 11692 | 90-Degree SAE Fitting - Valve Top To/From Motor |
| At Valve | 11751 | 90-Degree NPT Fitting - Valve Top To/From Motor |
| At Valve | 11652 | 90-Degree SAE Fitting - Valve Side To/From Power Source |
| At Valve | 11801 | 90-Degree NPT Fitting - Valve Side To/From Power Source |
| 43A | 10394 | Tandem Spool for Series AO Valve - 3/4" - SF303T4 |
| 43B | 10395 | Tandem Spool for Series 34 Valve - 5/8" - P1336 |
| 43C | 10396 | Open Spool for Series AO Valve - 3/4" - SF3030 |
| 43D | 10397 | Open Spool for Series 34 Valve - 5/8" - P1337 |
| 44 | 10398 | Chain Guard - 1645ST |
| Not Shown | 17077 | Retriever Guard Attachment Rod |
| Not Shown | 10550 | Guard Attachment Fender Washer |
| Not Shown | 10572 | Guard Attachment Lock Washer |
| Not Shown | 10757 | Guard Attachment Nut |
| 45 | 10400 | Hose w/ Connectors - Specify Length |
| 47 | 10401 | Plate Gear - 36-Tooth |
| 48 | 10404 | Sprocket - 9-Tooth |
| 49 | 16162 | Chain w/ Full & Half Connectors - # 60H x 42"L - 27 Links |
| 50 | 10406 | Outer Bronze Hub - 3/8" Holes - Current |
| 51 | 10408 | Engagement Lever - 7/8"W - Current |
| 52 | 10410 | Lever Seating Spring |
| 53 | 10411 | Lever Seating Ball |
| 54 | 10412 | Inner Bronze Hub - 3/8" Holes - Current |
| 58 | 10414 | Engagement Lever Knob - 6050K16 |
| Not Shown | 10572 | Split Lock Washer 3/8 - 18-8 |
| Not Shown | 12837 | Hex 3/8-16 x 2 1/2 C/S YZ GD8 |
EZ-Up Jack Parts
These awesome, high clearance, easy to operate jacks are available for replacement as a durable upgrade to any trailer. If you require a complete jack or repair parts, please contact us.
8805 Almag Outrigger Jack
The standard Model 8805 Almag Outrigger Jack offers simple, reliable use through better design and materials. With no fasteners and no rusting parts, simply move the bronze latch to raise and lower the Almag Jack Leg into position and replace the latch. It is that simple.
The Model 8805 Almag Outrigger Jack is standard on many of our utility construction trailers.
Hand Coil Reels
Sauber Mfg. Co. Hand Coil Reels offer convenient storage of hand coils with adjustable inner diameter and removable clamshell sides. With durable steel construction with hot dipped galvanized finish, Expect long service from this reel set. Available in single and dual coil configurations with several mounting configurations to match your fleet vehicle designs.
Contact your representative here.
Positioning Collars & Sleeves
Our aluminum bronze reel positioning collar and tapered cone provide a secure, concentric hold for your reels.
Install the insert sleeve on the reel bar and insert it into the reel as far as possible. Install the reel positioning collar directly behind the sleeve flange and tighten the locking bolt to 50 ft-lbs. You can generally approximate this torque by hand tightening the nut and then applying on complete turn (360°) if a torque wrench is not available. Do not exceed the rated capacity of the lifting hooks.
Contact us to place your order.
Specifications
Positioning Collars
- Provides positive clamping power to hold reels in place.
- Completely non-ferrous components ensure long life and rust-free operation.
- Lifting Hooks provide a convenient location to attach a sling to automatically center the reel load. Each hook has a capacity rating of 7000 lbs. Item 16289 does not require tools to remove or install.
- Model 8060 Spreader Bar (not shown) for payout while the reel is elevated by a load line.
Tapered Sleeve
- Bronze construction provides for smooth, concentric reel rotation.
- Stepped and tapered sleeves fit multiple size reel openings.
- Flanged design prevents sleeve from sliding into reel cavity.
- The perfect complement to Sauber Positioning Collars.
- Custom sizes available on request.
Application Information: Positioning Collars
Note: Specify Reel Bar Diameter When Ordering. Illustrations in Gallery Section…
| Model Number | Description |
|---|---|
| 18594 | Bronze Reel Positioning Collar w/Hook - 2" |
| 18595 | Bronze Reel Positioning Collar w/Hook - 2.25" |
| 18659 | Bronze Reel Positioning Collar w/Hook - 2.5" |
| 18720 | Bronze Reel Positioning Collar w/Hook - 2.625" |
| 18721 | Bronze Reel Positioning Collar w/Hook - 2.75" |
| 18596 | Bronze Reel Positioning Collar w/Hook - 3" |
| 1210 | Almag Hinge Collar - 2" - 3 lbs |
| 10387 | Bronze Tapered Sleeve - Specify 2.25", 2.5", 2.625", 2.75" or 3" ID - 2.63"-3.50" Taper - 3 lbs |
| 13970 | Bronze Tapered Sleeve - Specify 2.5", 2.625", 2.75", 3", 3.25" or 3.5" I.D. - 4.50"-5.38" Taper - 14 lbs |
| 10610 | Bronze Multi-Step Sleeve - Specify 2.5", 2.625", 2.75", 3" I.D. - 3.38"/3.88"/4.88" Steps - 16 lbs |
| 10611 | Bronze Multi-Step Sleeve - 3 1/16" I.D. - 3.44"/5.00"/5.25" Steps - 18 lbs |
| 8220 | Bronze Reel Coupling Bracket - 2.25" - 39 lbs |
Winch Binder Guide
Safer
- No ratchet teeth to catch fingers
- No awkward positions that cause back strain
- No breaker bar being affected by inclement weather making it slippery when wet or iced over
Easier
- 2:11 gear reduction makes getting to the proper tension a snap
- No guessing if you’ve achieved proper tension (getting to the next tooth engagement)
Longer Lasting
- Frame is Dacromet coated
- Shaft is solid stainless steel
- Crank is hot-dipped galvanized
- Greased, serviceable drive mechanism
- Nylon bearings
Available Parts:
- 19415 C-Channel Winch Drilled
- 18233 Double-L Winch
- 16675 Crank Handle
- 10868 4″x20’L Binder Strap w/ 1026 D-Ring – Gray
- 21756 4″Wx16’L Binder Strap w/ 1026 D-Ring – Blue
- 21757 4″Wx12’L Binder Strap w/ 1026 D-Ring – Yellow
- 14037 4″Wx30’L Binder Strap w/1021 Flat H
Solar Battery Box
Sauber Mfg. Co. Model 8854 4-Watt Solar Battery Box can save future maintenance costs and prevent risk from failure of lower quality systems. Contact us to purchase one for your trailer.
The breakaway and battery modules are often the most neglected element of trailer electrical systems. Because many breakaway devices are never called into use, it’s easy to understand why it might be overlooked. Section 393.43 of the Federal Code states that a breakaway system “. . . shall be provided to maintain application of the brakes on the trailer in such case for at least 15 minutes.” Many “lantern” style and small battery systems will clearly not meet this Federal requirement. Even larger batteries may be caught low on power if they are not checked at regular intervals. With shrinking maintenance resources available, breakaway batteries may not receive the attention they need. Given the exposure involved, it just makes good business sense to specify the best components available.
BENEFITS
- Single solar panel with 4.3W of charging, although we’ll still refer to it as a 4W package
- Less cavities to attract and retain dirt
- Reduced installation and replacement wiring; solar panel is installable and replaceable via bullet connectors
- Improved durability and reliability due to reduced splicing
- Inline, replaceable fuse is molded into the wiring which will protect the system in the event of a dead short or other current spike
- Stainless steel base with lockable hasp which can provide a modest level of security if/as needed
Application Information
Dimensions: 10 3/8″H x 10 9/16″L x 7 11/16″W
Note: Battery Not Included w/ Ship outs Due to Restrictions Covering the Transportation of Battery Acid
| Model Number | Description |
|---|---|
| 8854 | 4-Watt Solar System - Includes Battery Box w/ Almag Cover and Solar Panels - 8 lbs |
All-Weather Wheel Chocks
Specify Sauber Mfg. Co. All-Weather Wheel Chocks for safety. The grip strut face locks wheels tight on all surfaces in all weather conditions. The chock face grips tight to the tire surface while the motion of the tire wedges the chock between the wheel and the ground. The orange urethane grip handle is highly visible and reminds users to deploy and retrieve it. It is comfortable and easy to grip with gloved or bare hands.
All-Weather Wheel Chocks are unconditionally guaranteed against breakage for the life of the equipment they protect. Available with holders for every application, Sauber All-Weather Wheel Chocks continue to protect people and property decades after we designed and patented them.
All Weather Wheel Chocks are rated at the capacities shown below to help when specifying your equipment. If you have questions or would like place an order, contact us today.
Wheel Chock ratings are based on the recommended practice of placing two chocks at each non-steering axle, one set on both the right and left side of the vehicle, blocking the tire in the direction of the incline. Note that the U.S. Department of Transportation provides that the maximum single-axle weight limit on Federal highways is 20,000 lbs. The tandem-axle limit is 34,000 lbs. in combination, with some exceptions up to 40,000 lbs. at very wide axle spreads. Some states may allow higher weights due to “grandfather” rights. Learn more about bridge and axle weights on the DOT web site.
| Item Number | Finish/Material | Dimensions - W x D x H Plus 4 1/2"L Handle | Axle Capacity (lbs.) | Weight (lbs.) |
|---|---|---|---|---|
| 8500 | Galvanized Steel | 10 3/4" x 9" x 5 1/16" | 30,000 | 9.5 |
| 8500-FO | Galvanized Steel w/ Fluorescent Orange Powdercoat | 10 3/4" x 9" x 5 1/16" | 30,000 | 9.5 |
| 8500-AG | Aluminum w/ Grip Plate Base & Fluorescent Orange Powdercoat | 10 3/4" x 9" x 5" | 30,000 | 4.9 |
| 8500-NY | Galvanized Steel | 9 11/16" x 5 5/8" | 30,000 | 9.1 |
| 8500-NYFO | Galvanized Steel w/ Fluorescent Orange Powdercoat | 9 11/16" x 5 5/8" | 30,000 | 9.3 |
| 8500-PWFO | Galvanized Steel w/ Fluorescent Orange Powdercoat | 8 1/4" x 8" x 4 13/16" | 12,500 | 6.1 |
| 8505 Vertical Holder | Almag Casting Fits all Chocks Except 8500-AG | 3" x 12" x 3 3/4 | n/a | 2.8 |
| 8505-B Underbody Holder | Almag Casting Fits all Chocks Except 8500-AG | 3" x 11" x 6 3/4" | n/a | 3.0 |
| 8501 Vertical Holder | Galvanized Steel Fits 8500 & 8500-AG | 13 1/4" x 9" x 3.5" | n/a | 3.0 |
Model 1010-SR Hydraulic Power Source
With the convenience of electric start, this commercial grade Kohler engine offers reliable power. A digital hour meter, analog filter condition gauge, oil quality/level gauge and pressure and flow control keep your maintenance goals on track. A pump suction strainer and quality filtration keep contaminants out of your hydraulic system. A built-in oil cooler provides passive hydraulic oil cooling that protects your power source components. Non-rusting Almag cast cover and aluminum tank are extremely durable and provide the foundation to maximize uptime and contribute to the extended life our customers deserve. Our compact design and superior engineering make this unit the perfect choice for powering multi-reel flow divider applications or where exceptional motor speed and power is required. Choose from two output levels: 3100 PSI @ 8 GPM or 2250 PSI @ 12 GPM at no additional charge.
Model 1010-JR Hydraulic Power Source
This unit is ideal for self-loading operations or low RPM reel applications like substation and wire service recovery. Choose from two output levels: 2000 PSI @ 3 GPM or 3200 PSI @ 1.5 GPM at no additional charge.

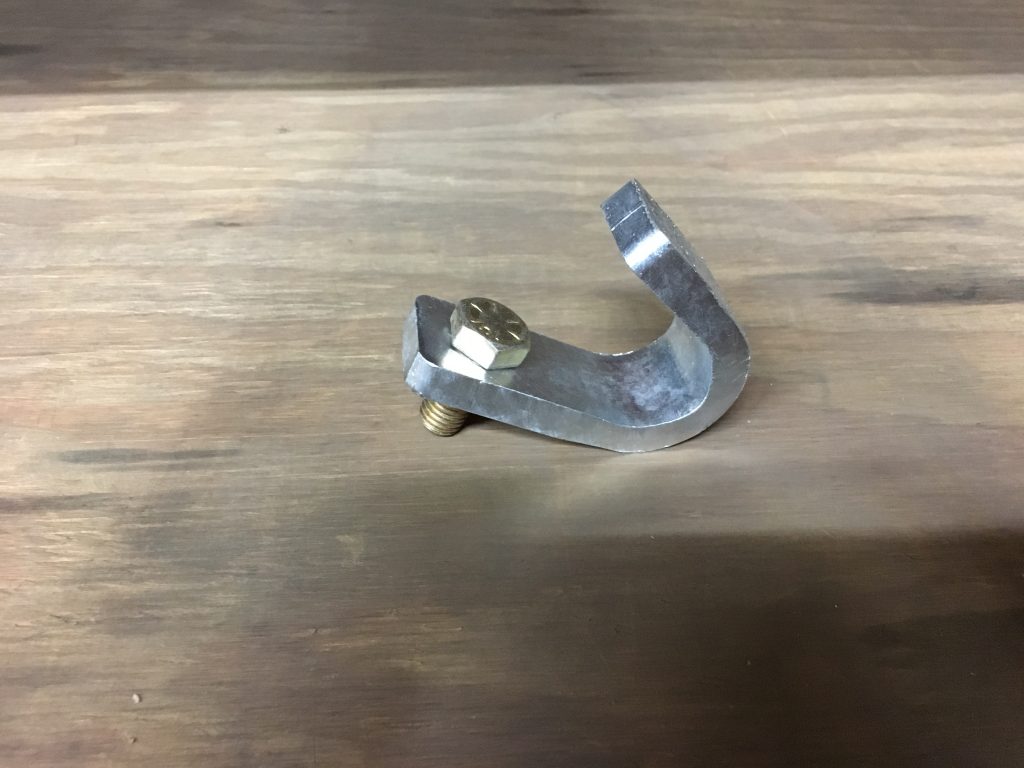

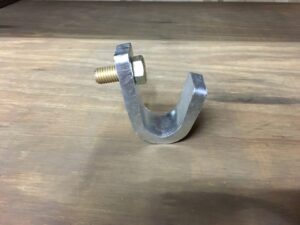

Transformer Lifting Hook
-
SAFE – PROVIDES A SECURE, CONTROLLED METHOD OF PLACING TRANSFORMERS
-
NON-RUSTING – BRONZE HOOK IS IMPERVIOUS TO WEATHER
-
ECONOMICAL – CAN BE REUSED OVER AND OVER AGAIN
-
CONVENIENT – O-RING SECURED FASTENER ELIMINATES LOOSE PARTS
-
MATERIALS: BRONZE HOOK, .625″-11 X 1.25″L GRADE 8 BOLT, # 568-113/70 DURO NITRILE 9/16″ ID O-RING
-
CAPACITY: 2,500 LBS EACH HOOK
Please contact us to discuss your application.

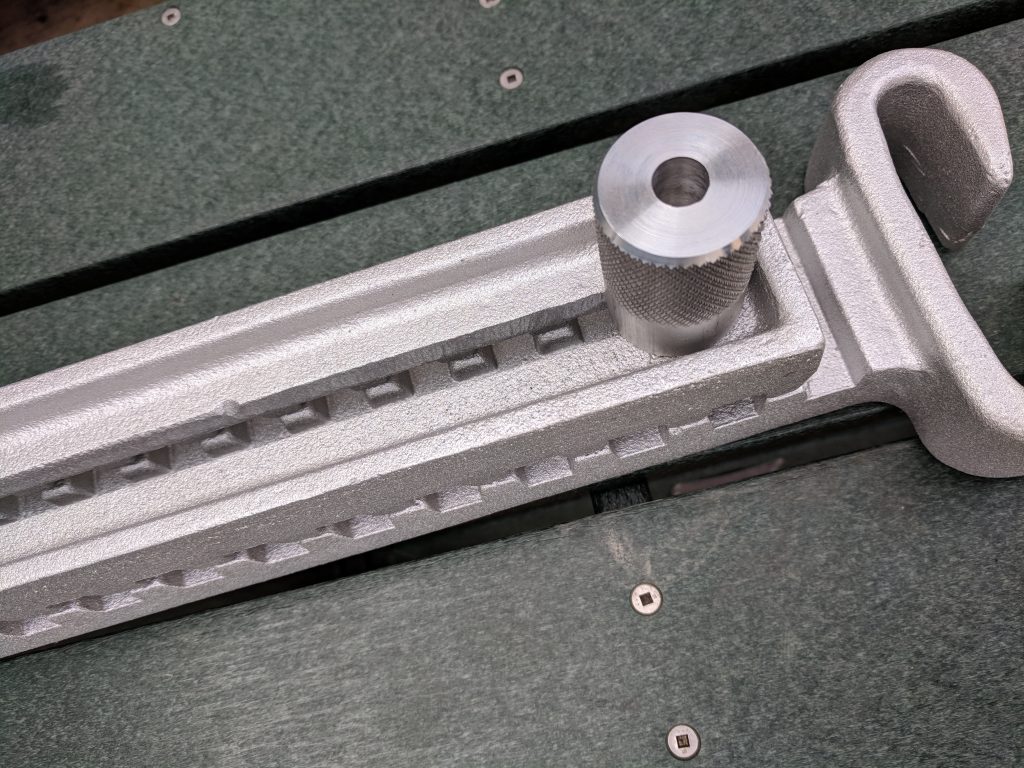

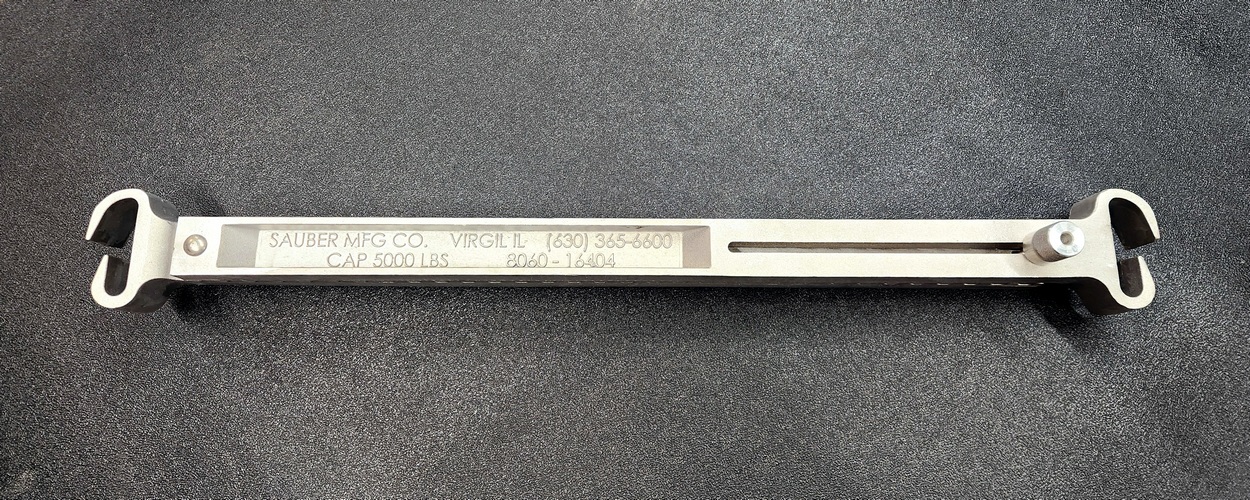

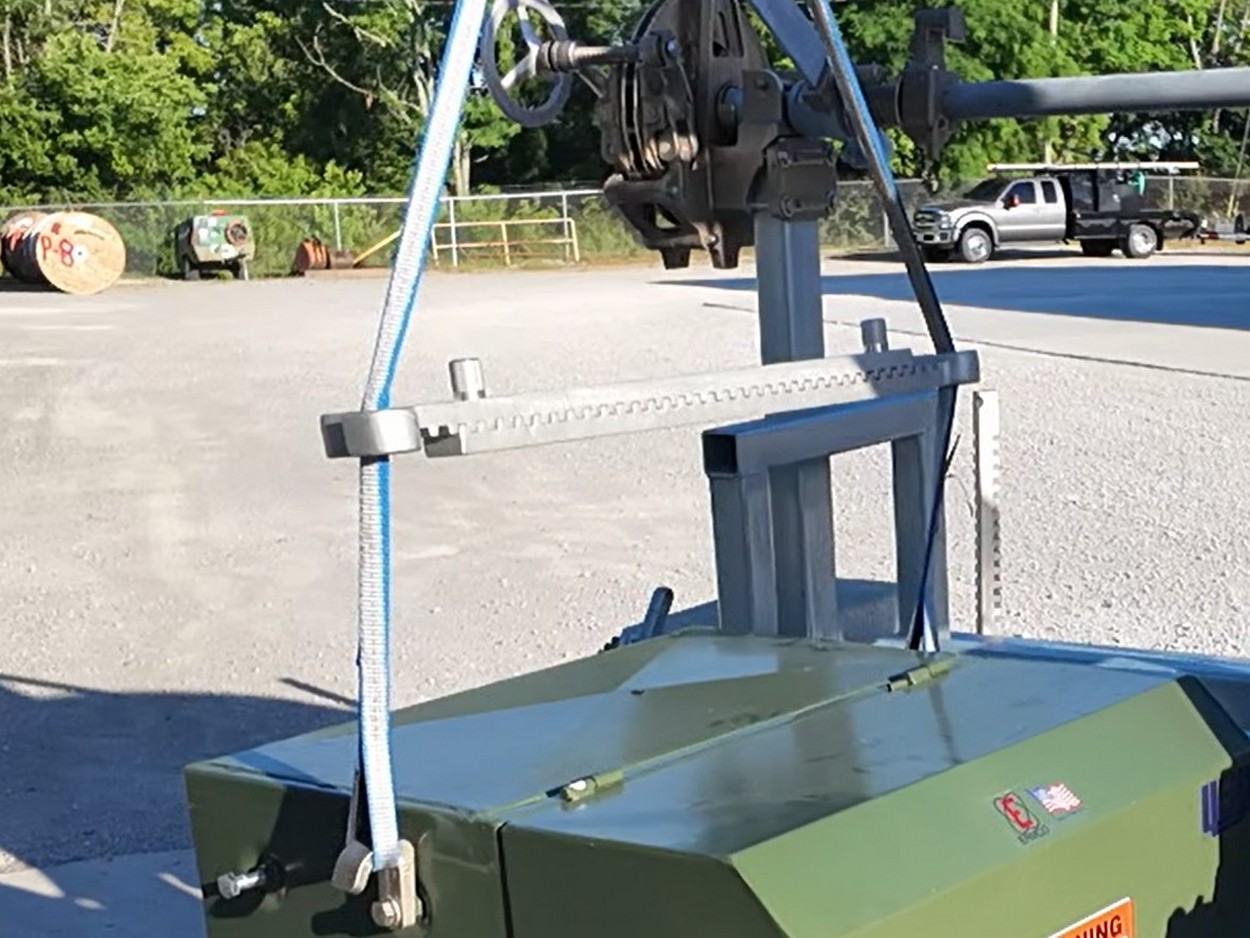

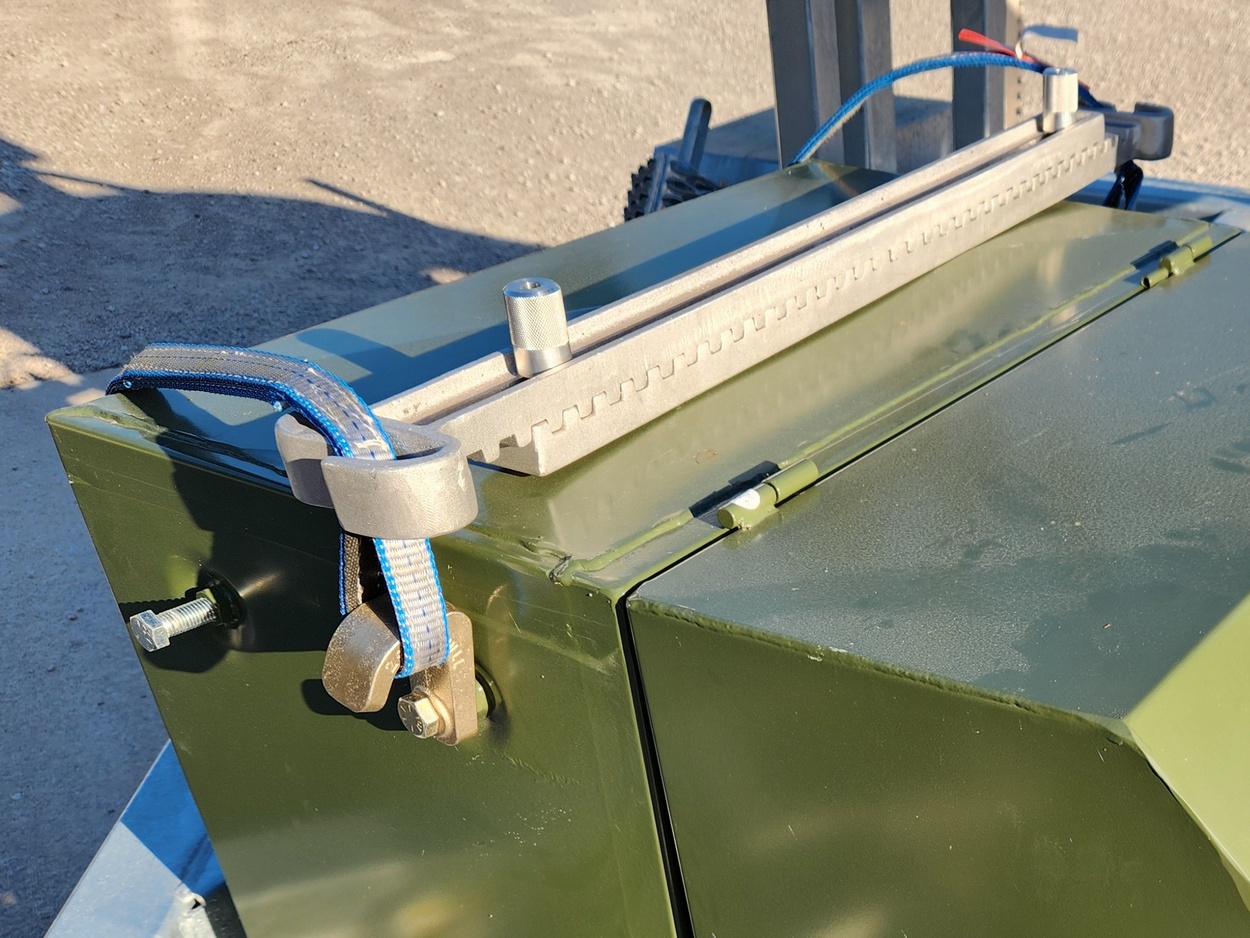

* Also shown in the Gallery is our Model 8060 Almag Spreader Bar with Fasteners
Christmas Tree Accommodation Package
Standard on all Model 1572 Rapid Overhead Deployment Trailers. Includes S4353-1 Upper Mast Bolt-On Bracket – Galv; S4355 Lower Mast Bolt-On Dual Support Clamp Brackets – Galv; (2) Fiberglass Crossarms Stored in PVC Holders; (6) Stringing Bocks & Lower Brace Brackets stored in Stainless Steel Tool Box, LS.
1619-Series Turret Frame
Turret frames can be incorporated into existing equipment like flatbeds and trailers or as original equipment built into your new vehicles.
1612-Series Reel Frame
These frames can be added to existing flatbed trailer or trucks and removed quickly to allow other uses.
Model 1010-H Honda Power Source
Electric starting with backup recoil assure that your crews are always work ready. This commercial grade Honda engine with automatic decompression is easy to start and quieter thanks to its overhead valve design. A digital hour meter, analog filter condition gauge, oil quality/level gauge and pressure control keep your maintenance goals on track. A pump suction strainer and quality filtration keep contaminants out of your hydraulic system. Non-rusting Almag cast cover and stainless steel tank are extremely durable and provide the foundation to maximize uptime and contribute to the extended life our customers deserve. Our compact design and superior engineering make this unit the perfect choice for powering Take-Up/Retrievers, self-loading operations, hydraulically powered turrets, and your hydraulic tools. Choose from three output levels: 2800 PSI @ 5 GPM, 2250 @ 6 GPM or 1500 PSI @ 8 GPM at no additional charge.
8″ Overspin Disc Brake
If you’ve ever had a reel free-spin and unwind wire on you, you will appreciate even this small, 8″ diameter ventilated bronze disc brake w/ manually activated calipers capable of 100 ft-lbs. of overspin torque. Simple to operate and adjust giving you control of the reel.
Model 1610 12″ Overspin Disc Brake
Some jobs call for a moderate amount of tensioning that benefit from control but also provide peace of mind to the operator. Our 12″ Ventilated bronze disc brake outperforms other solutions with rust free materials and 700 ft-lbs. of torque. Ideal for precise overspin control or proper tension into a bull wheel application.
AC Power Sources
When an application requires shore or generator power, we have many options for you. With years of experience using known, reliable components, let us provide right power solution for your equipment.
DC SmartPower Box
The SmartPower Box offers reliable, durable 12VDC power for your trailer’s accessories. The specifications below speak volumes about the products ability to meet and survive in real world construction environments. Dump beds, self-loading reel carriers and even hydraulic jacks benefit from the non-rusting materials, to IPS rated components. It’s built to exceed your expectations.
Secured in a Stainless-Steel Box
- Non-rusting w/
- Integral solar panel mounting
- Gas shocks for reliable control during access
- Stainless steel hinges, latch, and fasteners
Power Source with real capability
- Best in class technology w/ heavy duty motors and starters
- Built in pressure relief protects equipment and personnel
- Durable, non-rusting poly tanks provide quick oil level and quality observation
- Aluminum manifolds provide precision control and weather resistance
- Tethered remotes keep users safe and effective by allowing them to operate the trailer from an optimal position
Powerful 3-50W Solar Panel
- Helps maintain a healthy battery during periods of low use
- IP65 Rated (IP65=totally dust tight & protection against direct high-pressure water jet) junction box connecting panel to charge controller
- High module conversion efficiency
- Bypass diode minimizes power drop caused by shade and ensures excellent performance in low-light environments
Easy to understand 20A Charge Controller
- Sits between the solar panel and the battery, controlling the charging cycle and protecting the entire system
- Smart 4-Stage PWM charging: bulk, absorption, float, and equalization
- Included probe provides optimal charging across wide temperature ranges
- Watertight w/ backlit LCD display
- Provides important operation and troubleshooting information:
- Solar panel voltage & current
- Ambient temperature
- Battery voltage, the single key indicator of battery capacity
- Total power generation since last reset
- Carefree 10A Fully Automatic 120VAC battery
Charger
- Can be plugged in to any 120VAC outlet for an indefinite period
- Fast charging, current limited and reverse polarity protected
- Slow turn on with as little as 2 volts in the battery
- Takes the battery through charging stages
- Tough die cast enclosure w/ transformer-based design ensures long life
- Vibration resistant and no delicate electronics
- IP65 Rated
Built for a 925 CCA AGM Sealed Deep Cycle Battery
- Pure, non-alloy lead provides 2X the service life of an alloy AGM battery and 3X the life of a flooded (wet cell) battery
- Vibration and low temperature resistant with slow self-discharge; further protected by our solar panel & controller Charges 5X faster than a flooded battery with the ability to fully deep cycle
- Maintenance free; never add water
- Poly box for added protection for mechanics and tools
Grounding Lug
With simple attachment for convenient placement, our 5/8″ x 5″ bronze lug offers fast and secure grounding.
Our grounding lug is cast from C95400 Silicon Bronze which has 52% better conductivity than the carbon steel frame it is ultimately attached to. When installed on Hot Dipped Galvanized equipment, the C65100 Silicon Bronze fasteners mate the lug directly to the galvanized surface. Sauber Mfg. Co. provided Hot-Dipped Galvanized finish has more than triple the conductivity of the underlying carbon steel. These essential components are strongly resistant to corrosion and will endure decades of unsheltered use.
Contact us to discuss how you can utilize our grounding system on your equipment.
Bolt-on Swivel D-Ring
This is the only D-ring that has both the benefit of being replaceable and easily added or relocated without welding. In fact, our D-rings contain no welds at all due our bolt-together design. The ring is supported by our C95700 aluminum bronze backer casting, making it an unrivaled, exceptionally tough solution. Both the D-ring itself and the attachment bracket are hot-dipped galvanized, and the assembly is rated at a 9,120-lb. working load limit.
Our side-mounted D-rings allow for an unobstructed deck, which is particularly helpful with wide equipment.
No Sweat Cabinet Ventilation System
Steps and Ladders
Ask our sales professionals what step option will best fit your application. From rear bumper Safety Swing Steps to Stow-Away Ladders, we engineer for stability and strength, using a non-rusting solution to get you on and off your vehicle safely. Our choices are easily mountable and ensure a secure foothold and a system that stows securely out of the way for travel.
Stainless Steel Toolboxes
We are pleased to offer a premium line of custom stainless-steel toolboxes with an outstanding feature set at responsible prices. These heavy-duty toolboxes are built from 14-gauge stainless steel. 304 Polished stainless steel strap hinges feature Delrin bushings for low-friction opening and closure. A sealed compression latch and rubber gasketing ensure a weather and road-proof compartment. We always add panel stiffeners and gas shocks for larger dimensioned panels. Being a fully-customizable toolbox, dividers, bins, shelves, hooks and other requirements can be added.
Custom Reel Frame
We develop reel frame kits that retrofit to your existing flatbed truck or trailer. Bolt-on/off convenience creates a lot of flexibility for your fleet. Outfitting a custom frame with a turret assures the reel can line up to the work, not the whole vehicle. Our turrets lock on 6-degree intervals and rotate fully loaded with less than 10 pounds of force. A cost-effective alternative to a new trailer purchase. Contact us to discuss your application.
Socket Housing
Little or no protection for the electrical connection between tow vehicle and trailer can cause a maintenance disaster and risk of an accident if it fails. Our strong Almag housing unit that secures your socket system provides electrical wiring with a non-rusting and secure environment for years of hard labor. Specify the plug type when ordering. Also available with a dual connection option. Please contact us to help with your requirement.
Hitch Extension
Designed to help reduce the risk of jack-knifing, our fully adjustable hot dipped galvanized steel hitch extensions can be rotated for additional height options. They provide clearance between the trailer tongue and towing vehicle to avoid encumbrances like steps and tail shelves. We use only grade 8, North American certified bolts for attachment. Contact us to help with your requirement.
Pole Muzzle
Benefits
- Provides firm hold for utility poles
- Includes safety chain for breakaway protection
- Hot-dip galvanized finish survives real world field conditions
- Best in class winch technology
Contact us to discuss your application.
Rear Light Bar
A rear lightbar is essential to communicate the length of your load and your intention to stop or turn. Our fluorescent orange powder coated aluminum light bar for Pole Trailers provides FMVSS 108 lighting at the rearmost pole position. It’s an integral part of the trailer, so it’s always there, ready and working. An exclusive Tread Grip lined “V” combined with a 2″ nylon ratchet binder provided on the light bar assures a firm hold on the pole. And note the optional flag holders and switched, 360-degree strobe. Best of all, it is lightweight and keeps your operators and equipment safe and legal. Please contact us if you’d like to make a purchase.
Tensioning Brake & Take-up Retriever
If you’ve ever tried tensioning wire with a sub-par brake, you will recall the panic when the line starts surging and you have difficulty maintaining tension, a scenario most often experienced because the tensioning brake was made from steel components that have rusted in place.
Our all-bronze tensioning brake does not rust and offers precision braking that is guaranteed to be smooth and controlled by our patented ventilated bronze disc braking system. Components are modular for easy serviceability. The 16″ Ventilated bronze disc rotor of our standard Model 1602 brake is machined from a single casting providing the industry’s best performance for distribution wire stringing, and is available on trailers, frames and as a retrofit to existing equipment.
Our versatile Take-Up Retriever integrates with any Sauber brake without modification. This enhancement is designed to pull through short spans of new conductor and salvage wire. Optional hydraulically activated calipers are ideal for remotely controlling braking tension on elevated platforms. Multiple reels can be controlled from a single operator’s station. With 2600 ft-lbs of torque controlled by a full feathering valve, this tool changes normally back breaking work into a faster and safer operation.
Contact us for more information.
Almag Capstans
Our capstans are made from lightweight aluminum-magnesium, which reduces operator fatigue and lessens the risk of back injuries. They are completely non-rusting and have the highest strength to weight ratio of any as-cast aluminum alloy. An encapsulated spring cannot become loose or fall out, with no detached parts to go missing. Choose between a variety of sizes and styles to fit your requirements. Please contact us to discuss your application.
| Model Number | Description | Capacity @ 6 wraps | Weight |
|---|---|---|---|
| 8102 | General Purpose Capstan | 5000 lbs | 21 lbs |
| 8102-LN | Long Neck Capstan | 4000 lbs | 24 lbs |
| 8102-RC | Radius Capstan | 5000 lbs | 25 lbs |
| 8102-10 | 10 IN High Speed Capstan | 3000 lbs | 40 lbs |
| 8102-HT | High Torque Capstan | 6000 lbs | 22 lbs |
| -NC | Smooth Finish Nylon Coating Upcharge | N/A | N/A |
| 8230 | Capstan Coupler Attaches to the extended shaft of our reel bar and provides an industry standard bayonet shaft interface. | N/A | 14 lbs |
Hubodometers
Recording trailer miles makes sense for utility fleets. With our Hubodometers, you can optimize both your maintenance efforts and asset utilization with this tool. Our Hubodometers are hermetically sealed, have no moving parts for long life and include a 4-year, 500,000-mile warranty. Stainless steel brackets or aluminum housing installations provide rust-free, secure mounting. We offer retrofit kits for fleet-related bulk orders. Contact us to discuss your application.
Almag Outrigger Stabilizer Jacks
Experience shows that outriggers are seldom worn out; typically, they are torn off in transit because they were not convenient to fully elevate. These stabilizers feature a bronze latch that involves a simple swing action to lock into the stepped positions on the Almag shaft. Our modular, bolt-on design provides quick, weld-free serviceability when required.
EZ-Up Jack
Why spend time cranking a jack? We designed this swing away jack that requires minimal cranking before simply swinging into the horizontal position. With an easy-to-use handle and no pins, it easily rotates 90° for horizontal travel, providing maximum ground clearance. Jacks can be fitted with sand shoes or non-rusting swivel casters. All include a simple retainer for the jack handle when not in use.
Contact us to see if this product can be retrofitted to your trailers.
